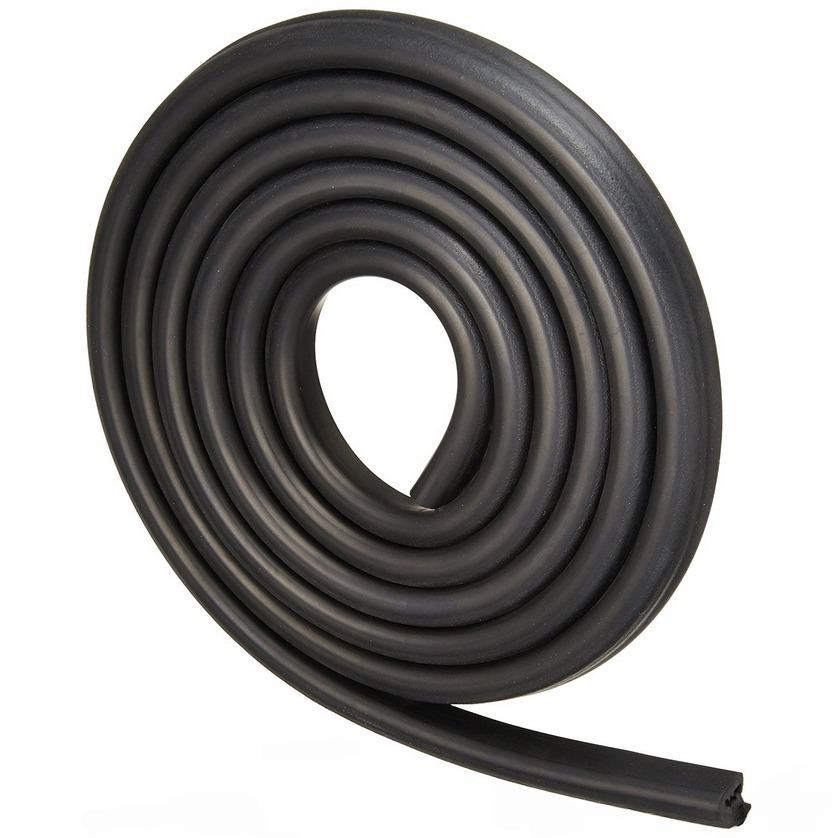

In the era of electric vehicles, door seals have evolved from simple rubber strips into integrated systems combining acoustic management, environmental protection, and smart interaction. This article analyzes core technologies and development trends.
I. Core Functions & Performance Requirements
Modern door seals must fulfill three missions:
- Acoustic Barrier: Block wind/road noise (target: <65dB @120km/h)
- Environmental Protection: IPX6 waterproof (high-pressure spray resistance)/IP6X dustproof
- Dynamic Adaptation: Compensate door deformation (±2mm tolerance) and thermal expansion (-40°C~85°C)
Key Metrics:
- Compression set: <15% (70°C×22h)
- Insertion force: 30-50N (ensuring door-closing feel)
- Air tightness: Leakage <1.5 CFM @50Pa
II. Material Advancements
1. Base Material Comparison
| Material | Advantages | Limitations | Applications |
|---|---|---|---|
| EPDM Rubber | Weather resistance/cost-effective | Poor low-temp elasticity | Economy vehicles |
| TPV Elastomer | Recyclable/lightweight | High-temp creep | EVs |
| Foamed EPDM | High rebound/low force transfer | Low strength | Luxury vehicle seals |
| Silicone Rubber | Extreme temp resistance | High cost | Performance models |
2. Surface Treatments
- Flocked coating: Reduce friction noise (μ<0.2)
- Hydrophobic coating: Contact angle >110° (rapid drainage)
- Conductive layer: Surface resistivity 10³Ω (EMI shielding)
III. Structural Innovations
1. Multi-stage Sealing
markdown
markdown
复制
markdown
复制
[Body]←Primary lip→[Door]
←Secondary cavity→
←Wiper lip→ - Primary lip: Solid EPDM provides initial sealing force
- Secondary cavity: Hollow structure enhances sound insulation (-3~5dB)
- Wiper lip: Removes debris (prevents dust accumulation)
2. Smart Compensation
- Pressure-equalizing channel: Balances internal/external pressure (prevents “door slam”)
- Memory spring core: Maintains sealing force at -30°C (>85% retention)
IV. Manufacturing Breakthroughs
1. Micro-foaming
- Supercritical N₂ foaming → 30% density reduction
- Microcellular structure (50-200μm) → 40% better sound absorption
2. Laser Welding
- Replaces adhesives → 5x stronger joints
- ±0.1mm precision → Complex 3D profiles
3. Quality Control
- 3D vision inspection: ±0.2mm profile tolerance
- Acoustic microphone array: 99.9% noise defect detection
V. EV-specific Solutions
- High-voltage Protection
- Conductive seals: Equipotential bonding (prevents arcing)
- EMI shielding: >60dB @30MHz-1GHz
- Lightweight Design
- Thin-wall: 1.2mm→0.8mm (35% weight reduction)
- Hybrid construction: EPDM+PA core (50% rigidity increase)
- Smart Integration
- Capacitive sensing: Touchless entry (3cm proximity trigger)
- Strain monitoring: Real-time door deformation detection
VI. Industry Trends
1. Active Sealing Systems
- Pneumatic adjustment: Auto-inflation based on vehicle speed
- Self-healing materials: Micro-crack repair within 24h
2. Sustainable Materials
- Bio-EPDM: 50% lower carbon footprint
- Recyclable TPE: >90% recovery rate
3. Multifunctional Integration
- Energy harvesting: Piezoelectric fibers capture door motion
- Air purification: Photocatalytic coating (VOC degradation)
Post time: Jun-27-2025
