In modern industrial sealing systems, conventional metal gaskets offer excellent mechanical strength but often face limitations in corrosion resistance, flexibility, and compatibility with aggressive media. On the other hand, non-metallic or rubber gaskets may suffer from compression set, insufficient pressure resistance, and reduced long-term stability.
To overcome these challenges, encapsulated flat gaskets have become an increasingly important sealing solution in high-performance industrial applications. By combining the structural strength of internal core materials with the chemical resistance of advanced fluoropolymer coatings, these composite gaskets provide both durability and reliable sealing performance under demanding operating conditions.
What Is an Encapsulated Flat Gasket?

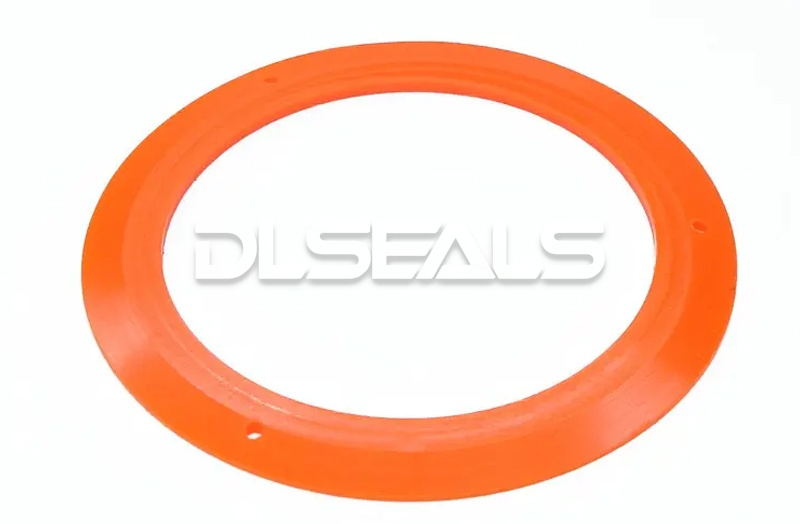

An encapsulated flat gasket is a composite sealing component consisting of an internal core material enclosed within a protective outer layer made from high-performance fluoroplastics such as PTFE, FEP, or PFA.
Its structure generally includes:
- Internal reinforcement or support core
- External encapsulation layer for sealing and corrosion protection
This dual-layer design enables the gasket to achieve:
- High mechanical strength
- Excellent chemical resistance
- Low friction characteristics
- Long service life
- Improved sealing reliability
Encapsulated flat gaskets are widely used in:
- Chemical processing systems
- Semiconductor manufacturing
- Pharmaceutical equipment
- Food-grade pipelines
- Vacuum systems
- Corrosive fluid handling applications
Common Structural Designs
Fully Encapsulated Design
In a fully encapsulated structure, the internal core is completely sealed inside the fluoropolymer layer, preventing direct contact between the process media and the core material.
Key advantages include:
- Outstanding corrosion resistance
- Excellent cleanliness and purity
- Reduced risk of media contamination
- Suitable for aggressive chemical environments
Typical applications include:
- Pharmaceutical equipment
- Ultra-pure chemical systems
- Semiconductor fluid transfer lines
Semi-Encapsulated Design
Semi-encapsulated gaskets expose part of the internal support structure while protecting the primary sealing surfaces.
Their characteristics include:
- Higher structural rigidity
- Improved resistance to creep deformation
- Better performance in high-pressure flange systems
However, their corrosion resistance is generally lower than that of fully encapsulated designs.
Common Encapsulation Materials
PTFE Encapsulation
PTFE (Polytetrafluoroethylene) is the most widely used encapsulation material due to its excellent chemical stability.
Main features include:
- Resistance to strong acids and alkalis
- Wide operating temperature range
- Extremely low friction coefficient
- Non-stick surface characteristics
PTFE encapsulated gaskets are commonly used in:
- Chemical processing
- Petrochemical equipment
- Electroplating systems
- Pharmaceutical industries
One limitation of PTFE is cold flow under prolonged high-pressure conditions, which must be considered during system design.
FEP Encapsulation
FEP offers superior thermal processing properties, allowing for more uniform and seamless encapsulation.
Advantages include:
- Smooth surface finish
- Improved encapsulation integrity
- Excellent suitability for clean industries
However, its temperature resistance is slightly lower than PTFE.
PFA Encapsulation
PFA combines the high-temperature resistance of PTFE with the processability of FEP.
Its primary advantages include:
- Higher purity levels
- Enhanced chemical resistance
- Superior performance in semiconductor applications
The main drawback is its relatively high material cost.
Performance Advantages
Excellent Corrosion Resistance
The fluoropolymer outer layer provides exceptional resistance against:
- Sulfuric acid
- Hydrochloric acid
- Organic solvents
- Oxidizing chemicals
- Various aggressive media
This makes encapsulated flat gaskets ideal for corrosive industrial environments.
Stable Sealing Performance
The flexible outer layer compensates for minor flange surface imperfections, helping maintain reliable sealing performance.
Compared with conventional metal gaskets, they offer:
- Lower leakage rates
- Improved adaptability
- Reduced flange surface requirements
Low Contamination Risk
Fluoropolymer materials exhibit excellent chemical inertness and minimal extractables, making them suitable for:
- Food processing systems
- Biopharmaceutical equipment
- Ultra-clean semiconductor applications
Superior Aging Resistance
Encapsulation materials typically provide excellent resistance to:
- UV exposure
- Ozone
- Thermal cycling
- Environmental degradation
This contributes to extended service life and long-term sealing stability.
Limitations of Encapsulated Flat Gaskets
Although highly effective, encapsulated flat gaskets are not suitable for every operating condition.
Limited Ultra-High Pressure Capability
Because fluoropolymer materials may experience creep or cold flow under extreme pressure, improper application can lead to:
- Extrusion deformation
- Sealing surface creep
- Long-term compression failure
Proper flange design, compression control, and groove configuration are therefore essential.
Sensitive Installation Requirements
Improper installation conditions such as:
- Flange misalignment
- Uneven loading
- Excessive compression
may damage the encapsulation layer and reduce sealing performance.
Careful installation procedures are critical to ensuring long-term reliability.
Typical Industrial Applications
Chemical Industry
Used in:
- Acid and alkali reactors
- Corrosive pipelines
- Chemical storage tank flanges
where leakage prevention and corrosion resistance are critical.
Semiconductor Industry
Ultra-pure chemical delivery systems require extremely low contamination levels.
PFA encapsulated gaskets help achieve:
- Reduced ionic contamination
- Lower particle generation
- Improved system cleanliness
Food and Pharmaceutical Industries
These gaskets are suitable for:
- CIP/SIP systems
- Sterile pipelines
- Hygienic processing equipment
while meeting stringent sanitary sealing requirements.
Vacuum Systems
Certain encapsulated gasket designs feature low gas permeability and are used in:
- Vacuum flanges
- Laboratory equipment
- Precision instrument systems
Key Selection Considerations
When selecting encapsulated flat gaskets, engineers should evaluate:
| Parameter | Key Consideration |
|---|---|
| Media Compatibility | Chemical corrosion resistance |
| Operating Temperature | Material temperature limits |
| Operating Pressure | Compression and creep resistance |
| Flange Type | Surface design and sealing geometry |
| Cleanliness Requirements | Food-grade or semiconductor-grade standards |
| Installation Space | Dimensional and structural limitations |
Additional factors include:
- Compression rate
- Recovery performance
- Thermal expansion
- Long-term creep resistance
Future Development Trends
As industrial systems continue to demand higher cleanliness, durability, and reliability, encapsulated flat gasket technology is evolving toward:
- Higher purity materials
- Lower extractable levels
- Improved high-temperature resistance
- Enhanced dimensional precision
- Reinforced composite structures
Emerging industries such as hydrogen energy, semiconductor manufacturing, and advanced chemical processing are also driving demand for customized encapsulated sealing solutions.
Conclusion
Encapsulated flat gaskets combine the mechanical strength of internal support materials with the outstanding chemical resistance of fluoropolymer encapsulation, making them an ideal sealing solution for corrosive, high-purity, and demanding industrial environments.
