In the sealing field of industrial equipment, demanding operating conditions place extremely high demands on seals: high-speed rotation, extreme temperatures, chemical corrosion, and complex media. Traditional rubber seals often struggle to meet these challenges. Therefore, a sealing solution that combines the structural strength of metal with the wear resistance of high-performance polymers—the inverted double-lip stainless steel oil seal—has emerged as an ideal choice for high-end industrial applications.

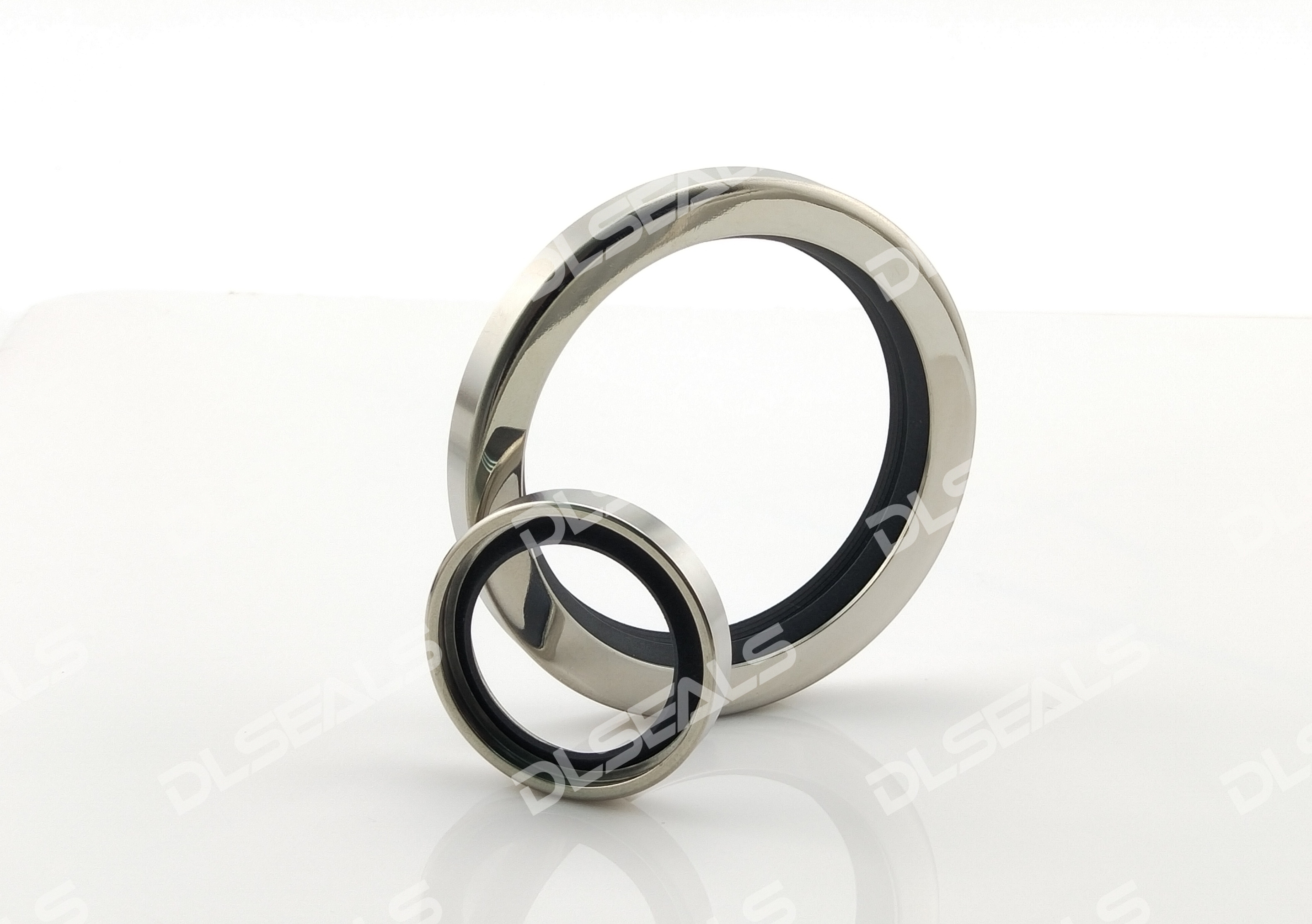

This article will provide an in-depth introduction to the performance, characteristics, and outstanding advantages of an inverted double-lip oil seal with a 304 stainless steel frame and a modified polytetrafluoroethylene (PTFE + glass fiber) core.
In the sealing field of industrial equipment, demanding operating conditions place extremely high demands on seals: high-speed rotation, extreme temperatures, chemical corrosion, and complex media. Traditional rubber seals often struggle to meet these challenges. Therefore, a sealing solution that combines the structural strength of metal with the wear resistance of high-performance polymers—the inverted double-lip stainless steel oil seal—has emerged as an ideal choice for high-end industrial applications.
This article will provide an in-depth introduction to the performance, characteristics, and outstanding advantages of an inverted double-lip oil seal with a 304 stainless steel frame and a modified polytetrafluoroethylene (PTFE + glass fiber) core. I. Core Materials: The Cornerstone of a Strong Alliance
1. 304 Stainless Steel Frame:
• Excellent Structural Strength and Rigidity: Provides sturdy support for the seal, ensuring it resists deformation and misalignment under high-pressure, high-speed operating conditions, and prevents warping during installation.
• Excellent Corrosion Resistance: Resists water, steam, various chemicals, and organic solvents, making it suitable for clean and corrosive environments such as those used in the food, pharmaceutical, and chemical industries.
• Wide Temperature Adaptability: Maintains stable performance over a wide temperature range of -50°C to +250°C.
2. Modified Polytetrafluoroethylene (PTFE + Glass Fiber) Sealing Lip:
• Extremely Low Coefficient of Friction: PTFE has one of the lowest known coefficients of friction among solid materials, significantly reducing starting and running torque, energy consumption, and shaft wear. It is particularly suitable for low-speed, high-speed, and dry-running applications. • Excellent Wear Resistance: The addition of glass fiber significantly enhances the wear resistance, compressive strength, and dimensional stability of pure PTFE, extending its lifespan far beyond that of ordinary rubber seals.
• Broad Chemical Resistance: Resistant to virtually all chemicals, solvents, and oils, performance unaffected by the medium.
• Stable High and Low Temperature Performance: Can operate in temperatures ranging from -100°C to +250°C for long periods of time, and can withstand higher temperatures for short periods of time.
II. Unique Design: The Secret of the Reverse Double Lip Structure
Unlike the “positive” lip of traditional oil seals (which faces the sealing medium), the reverse lip design is its core innovation.
• Working Principle:
• Traditional oil seals rely on medium pressure (such as oil pressure) to “pull” the lip open, forcing it to fit more tightly against the shaft, thereby achieving a seal. Under low or no pressure, their sealing effectiveness is relatively weak.
• Reverse Double Lip Oil Seals: The main lip of the reverse double lip oil seal faces away from the sealing medium. This design allows for sealing independent of system pressure.
• Primary sealing lip: Its inherent elasticity and radial force maintain a stable, constant contact pressure against the shaft surface, forming a strong barrier. This provides excellent sealing performance, effectively preventing leakage, regardless of system pressure, positive or negative pressure, or even when the system is stationary.
• Secondary lip (dust lip): Located outside the primary lip, this secondary lip acts as a secondary line of defense, specifically designed to prevent external contaminants such as dust, impurities, and moisture from invading the equipment, protecting the primary lip and bearing system.
• Advantages:
• Zero-pressure sealing: Reliable sealing performance during system startup and shutdown, low pressure, or vacuum conditions.
• Anti-reverse rotation: Suitable for use in conditions with forward and reverse shaft rotation, sealing performance is unaffected by the direction of rotation.
• Lower frictional heat: Constant contact pressure eliminates frictional heat fluctuations caused by pressure fluctuations, resulting in smoother operation.
III. Performance Summary
• Ultra-Long Service Life: The high wear resistance of modified PTFE and the fatigue resistance of the metal core enable a service life several times longer than that of traditional rubber oil seals.
• Wide Applicability: Excellent adaptability to media (from highly corrosive chemicals to high-purity food-grade greases), temperatures (-50°C to +250°C), and speeds (from low to high speeds).
• Low Friction and Energy Saving: Reduces power loss and operating temperatures.
• High Reliability: The reverse lip design ensures sealing stability under various operating conditions, significantly reducing the risk of unplanned downtime.
• Clean and Environmentally Friendly: The material is non-toxic and eluting-free, meeting FDA and other regulatory requirements and suitable for clean environments.
IV. Significant Advantages Over Traditional Materials
Compared to traditional oil seals made of NBR (nitrile rubber) or FKM (fluororubber), reverse double-lip oil seals with a 304 stainless steel core and modified PTFE demonstrate a comprehensive performance improvement. First, in terms of durability and friction performance, modified PTFE’s extremely low coefficient of friction and exceptional wear resistance extend its lifespan far beyond that of traditional rubber products. It also significantly reduces operating torque, achieving energy savings and consumption reductions. Traditional rubber materials, on the other hand, not only wear more quickly, but their higher coefficient of friction also translates to greater power loss and heat generation risks.
Second, the difference between the two is even more pronounced in terms of environmental adaptability. Modified PTFE is resistant to virtually all chemicals and has an extremely wide operating temperature range (-100°C to +250°C), making it easily capable of handling severe corrosion and extreme temperature conditions. In contrast, traditional rubber’s chemical resistance is selective, requiring careful selection based on the specific medium (for example, NBR is oil-resistant but sensitive to ozone, while FKM is high-temperature resistant but sensitive to certain solvents). Furthermore, its relatively narrow temperature resistance limits its application in demanding environments.
The most critical difference lies in its sealing mechanism and reliability. The innovative design of the reverse double-lip oil seal makes its sealing performance completely independent of internal system pressure. Even during system startup, shutdown, or vacuum conditions, it maintains a reliably secure seal with constant radial force, regardless of rotational direction. Traditional oil seals, on the other hand, rely heavily on the system’s positive pressure to “pull” the lip open. This significantly reduces sealing reliability in the face of low pressure, pressure fluctuations, or shaft rotation.
Furthermore, the double-lip structure provides both primary sealing and dust protection, effectively isolating external contaminants from intrusion compared to traditional single-lip oil seals.
In summary, this new generation of oil seals is more than a simple material replacement; rather, it represents a comprehensive technological upgrade tailored to complex operating conditions, including high and low speeds, dry running, forward and reverse rotation, corrosive environments, and a wide temperature range. Its comprehensive performance far surpasses that of traditional rubber oil seals.
Conclusion
In summary, the reverse double-lip oil seal, with its 304 stainless steel frame and modified PTFE (containing glass fiber) as its core, is more than a simple seal replacement; rather, it represents a technological upgrade solution for demanding operating conditions. It perfectly combines the strength of metal with the ultra-slip and wear-resistant properties of modified polymers, and through the innovative reverse lip design, it achieves unprecedented sealing reliability and environmental adaptability. For companies that pursue long-term stable operation of equipment, reduce maintenance costs, and cope with complex process conditions, investing in such high-performance oil seals is undoubtedly a wise choice.
