In modern industrial transmission systems, bearing bushings are required not only to support rotating shafts but also to maintain extremely low wear rates in harsh, non-lubricated environments. For complex operating conditions involving medium-to-high rotational speeds and instantaneous thermal shocks, high-performance self-lubricating engineering plastic bearings demonstrate adaptability far superior to traditional metal bushings.
I. Structural Design: The Engineering Value of the Flanged Configuration

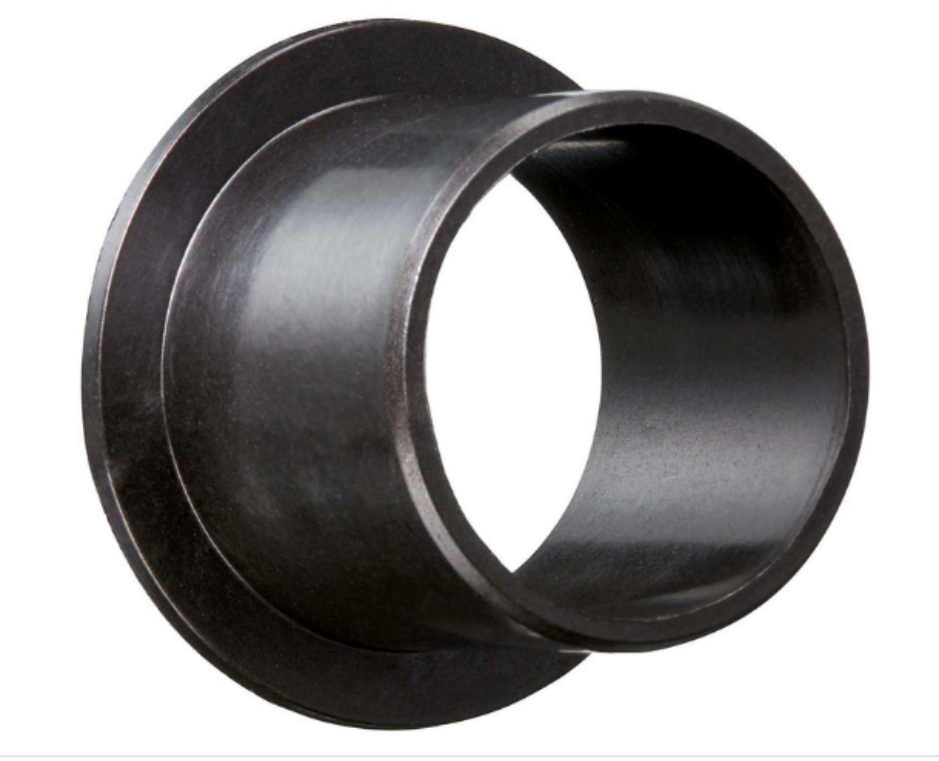

The core design of a flanged sleeve bearing lies in its integrated protruding rim, which provides multiple safeguards in engineering applications:
-
Dual Axial and Radial Positioning: The flange serves as more than just radial support; it acts as a mechanical stop, effectively preventing axial displacement of the bearing within the housing during high-speed rotation or under heavy loads.
-
Stress Optimization: The flanged surface increases the contact area for axial loads, allowing for better distribution of axial force. This minimizes local stress concentration and protects the surface of the mating components.
-
Ease of Installation: The flanged structure simplifies the assembly process, ensuring the bearing can be pressed accurately and quickly into the designated position.
II. Material Analysis: Core Advantages of High-Performance Self-Lubricating Plastics
These products are typically manufactured from high-performance composite engineering plastics (such as the iglidur X series). Their technical superiority is rooted in:
-
Exceptional Thermal Stability: These materials possess high heat deflection temperatures, enabling them to easily withstand sharp fluctuations in ambient temperature. They maintain structural integrity even during instantaneous thermal peaks, preventing softening or seizure.
-
Solid Lubrication Technology: Unlike metal bearings that require external oil or grease, these materials feature microscopic solid lubricants uniformly distributed throughout the matrix. During operation, a micro-thin transfer film forms on the mating surface, achieving “self-lubrication and zero maintenance.” This completely eliminates the risk of lubricant failure or environmental contamination at high temperatures.
-
Superior Chemical Inertness: Engineering plastics are naturally resistant to acids, alkalis, and various solvents, making them ideal for harsh environments involving chemical processing, cleaning agents, or exposure to corrosive media.
III. Performance Analysis Under Dynamic Conditions
In practical applications, the bushing must remain stable during continuous rotation:
-
Wear Resistance and Low Friction: High-performance composites possess high PV values (Pressure x Velocity limits), allowing for rapid heat dissipation at medium-to-high speeds. This reduces the friction coefficient and significantly extends the service life of both the shaft and the bushing.
-
Vibration Dampening: Compared to highly rigid metal bushings, engineering plastics offer better damping characteristics. They can absorb micro-vibrations within the system, resulting in quieter operation.
IV. Industrial Applications and Engineering Recommendations
Flanged bushings are widely used in automated production lines, precision pumps and valves, laboratory instruments, and precision automotive components. DLSEALS recommends focusing on the following engineering points during selection:
-
Clearance Design: The thermal expansion coefficient of the material must be considered to ensure the inner diameter does not seize the shaft due to expansion at peak temperatures.
-
Housing Bore Precision: Although engineering plastics possess a degree of flexibility, a high-precision housing bore remains a prerequisite for ensuring the circularity and operational lifespan of the bearing.
Conclusion: High-performance self-lubricating flanged bushings provide a reliable anti-friction solution for demanding environments through the synergy of material science and precision engineering. Guangdong DLSEALS Technology Co., Ltd. is committed to providing global customers with precise sealing and bearing technical support to ensure the continuous and stable operation of complex systems.
