In the primary loop, main pumps, steam generators, and valve systems of nuclear power plants, sealing components withstand extreme conditions including 350°C high-temperature pressurized water, intense radiation (10²¹ n/cm²), boric acid corrosion, and seismic loads. Failure may cause radioactive leakage or reactor shutdown. Metal seals and graphite seals form a dual-protection system for nuclear island safety through complementary properties. This article analyzes nuclear-grade sealing technology from four dimensions: materials science, structural design, accident response, and cutting-edge innovation.
1. Extreme Challenges of Nuclear Sealing
Core Operating Parameters:
- PWR: 350°C/15.5MPa; BWR: 290°C/7.2MPa (material creep → loss of sealing specific pressure)
- Radiation Damage: Fast neutron fluence >10²¹ n/cm² (metal embrittlement/graphite pulverization)
- Chemical Corrosion: 1800ppm boric acid + 2.2ppm LiOH (stress corrosion cracking)
- Dynamic Loads: SSE 0.3g + 20mm/s pipeline vibration (sealing interface micro-slip leakage)
Nuclear Seal Key Metrics:
- Design lifetime ≥60 years (EPR Gen-III requirement)
- Leakage rate ≤1×10⁻⁹ m³/s (ASME III Appendix)
- Maintain sealing after LOCA
2. Metal Seals: Fortress Against Radiation & High Strength
2.1 Nuclear Alloy Materials
- Inconel 718: Resists 15 dpa radiation, 950MPa @350°C (main pump seals)
- 316LN Stainless Steel: 20 dpa resistance, 450MPa @350°C (primary loop flanges)
- Alloy 690: 25 dpa resistance, immune to intergranular corrosion (steam generator tubesheets)
- Zirconium Alloy (Zr-2.5Nb): 100 dpa resistance, 300MPa @400°C (fuel rod seals)
dpa = atomic displacement damage
2.2 Innovative Structures

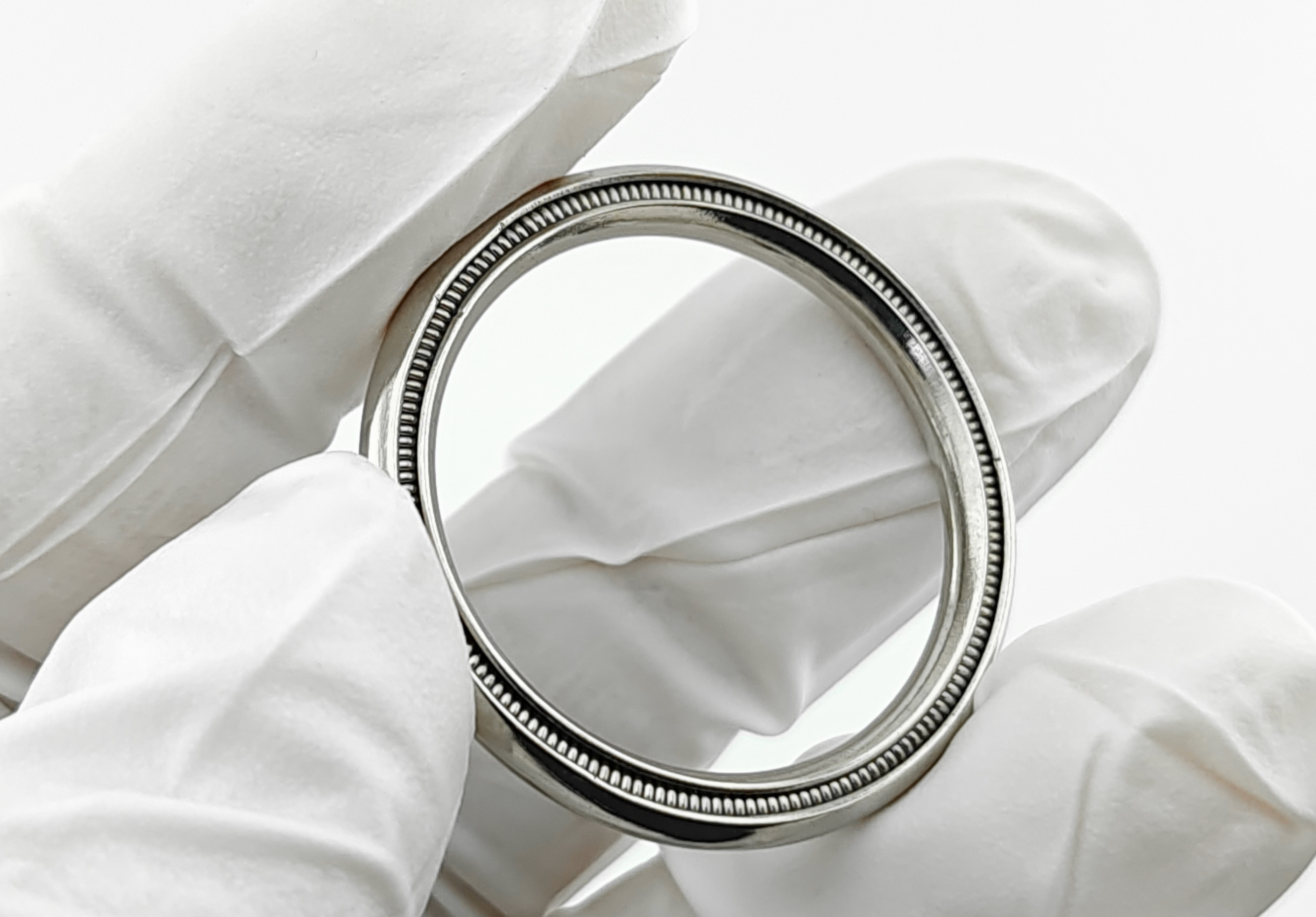

- Self-Energizing Metal C-Rings:
- Dual-arch beam radial expansion under pressure (pressure self-enhancement)
- <10⁻¹¹ m³/s leakage @15MPa (Westinghouse AP1000 application)
- Welded Metal Bellows:
-
100 laser-welded layers of 50μm Hastelloy® C276 foil
- ±15mm axial compensation capacity (seismic resistance)
-
3. Graphite Seals: Core of High-T Lubrication & Emergency Sealing
3.1 Nuclear Graphite Performance
- Isostatic Graphite: 1.85g/cm³ density, 90MPa strength (valve stuffing boxes)
- Pyrolytic Graphite: 2.20g/cm³ density, μ=0.08 friction coefficient (control rod drives)
- SiC-Reinforced Graphite: 220MPa strength, 900°C resistance (HTGRs)
- Boron-Infiltrated Graphite: 700°C oxidation resistance (LOCA emergency seals)
3.2 Structural Innovations
- Spring-Energized Graphite Rings:
- Inconel spring + graphite lip + anti-extrusion ring
- Zero leakage post-LOCA (170°C saturated steam)
- Split Graphite Packing:
- 15° wedge-angle self-tightening design
-
250,000 cycle lifespan (Fisher nuclear valves)
4. Extreme Condition Verification
4.1 Radiation Aging Test (ASTM E521)
- Inconel 718: 12% yield strength reduction after 3MeV proton/5dpa irradiation
- Nuclear Graphite: >85% strength retention at 10²¹ n/cm²
4.2 LOCA Simulation (IEEE 317-2013)
- Sequence: 15.5MPa/350℃ steady state → 0.2MPa in 2min → 24h at 170℃ steam
- Criteria: Metal seals <1.0 Scc/s leakage; Graphite seals: no visible leakage
4.3 Seismic Testing (ASME QME-1)
- OBE: 0.1g/5-35Hz/30s vibration
- SSE: 0.3g time-history simulation
- Post-vibration leakage fluctuation <10%
5. Typical Applications
5.1 Reactor Vessel Head Seals
- Ø5m flange, 60-year maintenance-free, LOCA-resistant
- Solution: Dual Inconel 718 C-rings (primary) + boronized graphite (backup)
5.2 Main Pump Seals
- SiC ceramic rotating ring (2800HV) + pyrolytic graphite stationary ring
- Hastelloy® C276 bellows support
- Leakage: <0.1L/day (Hualong One data)
5.3 HTGR Helium Systems
- Haynes® 230 alloy O-ring (Al₂O₃ coated)
- SiC fiber-reinforced graphite (5× wear resistance)
6. Cutting-Edge Innovations
6.1 Smart Sensing Seals
- Neutron damage monitoring: dpa calculation via resistivity (error <5%)
- FBG optical fiber: real-time stress monitoring (±0.1MPa accuracy)
6.2 Accident-Tolerant Materials
- Self-healing metal seals: Field’s metal microcapsules (62°C melt-sealing)
- CVD-densified graphite: porosity <0.1%
6.3 Gen-IV Reactor Solutions
| Reactor Type | Sealing Solution |
|---|---|
| Sodium-cooled | Ta-coated C-ring + BN packing |
| Molten Salt | Hastelloy N® + pyrolytic graphite |
| Fusion | W-reinforced graphite + liquid Li |
Triple-Barrier Philosophy
Barrier 1: Metal Seals
- Inconel 718 converts 15MPa system pressure to 300MPa sealing force
- Zr-alloy fuel rods: zero leakage at 40GWd/tU burnup
Barrier 2: Graphite Seals
- Boronized graphite forms borosilicate glass during LOCA
- Pyrolytic graphite releases self-lubricating gases at high temperatures
Barrier 3: Intelligent Monitoring
- Neutron sensors: 15-year early warning
- Digital twin simulates seismic integrity
Future Directions
With fusion reactors and SMRs, sealing technology will evolve toward:
- Extreme environment adaptation (He-ion irradiation/molten salt corrosion)
- Miniaturization (fuel microsphere seals <1mm diameter)
The 60-year safe operation of nuclear plants relies on these centimeter-scale “sealing fortresses.”
