Perfluoroelastomer (FFKM) Seals: The Ultimate Barrier in Industrial Critical Environments

In industries including chemical processing, pharmaceuticals, semiconductors, and energy, the reliability of equipment and pipeline seals is fundamental to safety, efficiency, and continuous production. When confronted with strong acids, alkalis, high temperatures, high pressures, and highly aggressive chemical solvents, conventional rubber seals often fail rapidly, leading to leaks, contamination, and even safety incidents. In such scenarios, ​Perfluoroelastomer Seals (FFKM)​​ emerge as the ultimate solution for extreme sealing challenges. Not a futuristic material, but the pinnacle of current material science, FFKM is acclaimed as the “Corrosion King” of elastomers.

​I. What is FFKM? Decoding Its Core Advantages​

Perfluoroelastomer (FFKM) is a ​fully fluorinated elastomer​ where virtually all hydrogen atoms in its molecular structure are replaced by fluorine atoms. This unique architecture grants it near-indestructible properties:

1. ​Unmatched Chemical Resistance:​​ FFKM exhibits near-immunity to the vast majority of corrosive chemicals:
   • Strong acids (e.g., sulfuric, nitric, hydrochloric, hydrofluoric acid)
   • Strong alkalis (e.g., sodium hydroxide solutions)
   • Strong oxidizing agents
   • Nearly all organic solvents (e.g., ketones, esters, ethers, aromatics, halogenated hydrocarbons)
   • High-temperature steam
   • Aggressive gases (e.g., chlorine, fluorine, plasma etch gases)
     Principle: Fluorine atoms densely shield the carbon backbone, forming an impervious, chemically inert “armor” that blocks permeation, attack, and swelling by chemical media.
2. ​Exceptional High-Temperature Stability:​​ FFKM operates reliably over an ​extremely wide temperature range of -25°C to +320°C​ (varies by grade), with short-term peaks exceeding ​​+327°C. This far surpasses the limits of conventional rubbers and standard fluoroelastomers (FKM).
3. ​Very Low Permeability:​​ Its dense molecular structure minimizes gaps, effectively blocking gas and liquid permeation for near-zero leakage and high-purity operation.
4. ​Outstanding Cleanliness & Compliance:​​ Inherently pure with minimal leachables, FFKM complies with stringent standards: ​FDA 21 CFR 177.2600, USP Class VI​ (biocompatibility), ​NSF/ANSI 51​ (food contact), ​EMA regulations.
5. ​Superior Compression Set Resistance:​​ Maintains effective sealing force even after prolonged exposure to heat and pressure, ensuring long-term reliability.

​Table 1: Key Performance Comparison: FFKM vs. Common Sealing Materials​

Note: Ratings are relative. “Excellent” denotes best-in-class performance. Actual performance depends on specific grade and service conditions.

​II. Why Conventional Seals Fall Short​

• ​NBR, EPDM, etc.:​​ Suffer rapid ​swelling​ (softening/loss of strength) or ​degradation​ (cracking/embrittlement) with strong acids, alkalis, or solvents.
• ​Standard FKM:​​ Offers better chemical/heat resistance than general-purpose rubbers but has limitations:
  • Poor resistance to strong alkalis, ketones (e.g., acetone), some esters, amines, and hot water/steam.
  • Max. continuous use temperature typically ≤200°C.
  • Compression set may increase rapidly in hot chemical media.
• ​PTFE:​​ Excellent chemical inertness and temperature resistance. However, as a ​plastic​ (not an elastomer), it lacks resilience, requires complex designs/high loads for sealing, and is prone to ​cold flow​ (creep under stress), making it unsuitable for dynamic seals alone.

​III. Critical Applications: Solving the “Impossible”​​

FFKM seals are indispensable in these demanding sectors:

1. ​Semiconductor & Chip Manufacturing:​​ Plasma etching (CF₄, SF₆, Cl₂ gases), CVD, cleaning processes. Any micro-leak or particulate contamination risks wafer loss. FFKM O-rings, square-rings, valve diaphragms ensure ultra-high vacuum and purity.
2. ​Chemical & Petrochemical:​​ Pumps, valves, reactors, heat exchangers, piping handling aggressive media under high T/P.
3. ​Pharma & Biotech:​​ Sterile filling lines, CIP/SIP systems, bioreactors, autoclaves (resists repeated 121°C-135°C steam sterilization). Essential for contamination-free operation per FDA/EMA/USP VI.
4. ​Analytical Instrumentation:​​ GC/HPLC fluidic seals, exposed to pure solvents/carrier gases.
5. ​Lithium-Ion Battery Production:​​ Electrolyte filling (resists LiPF₆ salts & corrosive carbonate solvents).
6. ​Nuclear Industry:​​ Seals demanding radiation/high-T/chemical resistance.

​IV. Principal FFKM Seal Types​

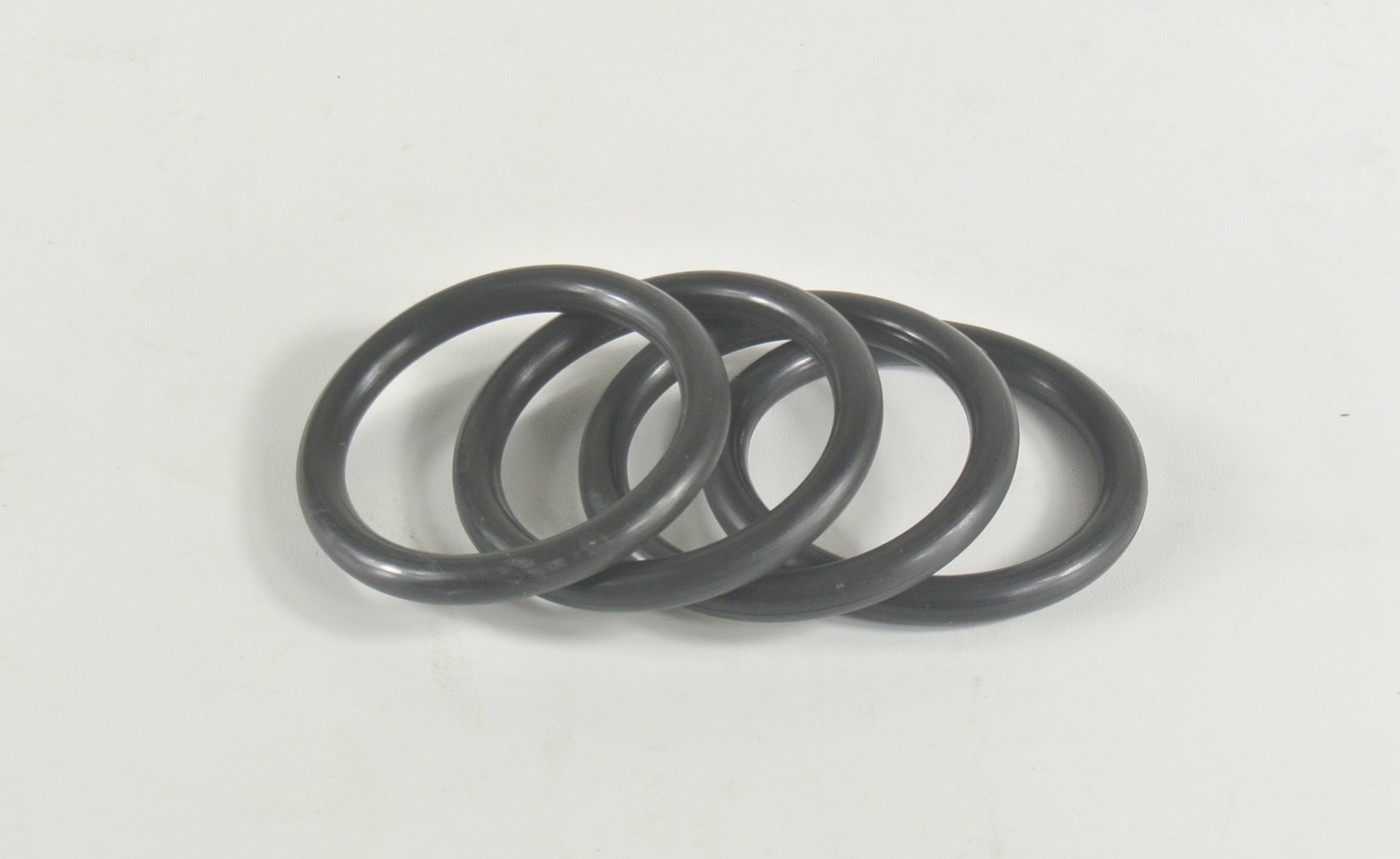

• O-Rings, D-Rings (Static/Dynamic)
• U-Cups, V-Rings (Reciprocating)
• Gaskets (Flanges)
• Valve Seats (Diaphragm/Ball Valves)
• Custom Molded/Machined Parts

​V. Selecting the Right FFKM: Key Considerations​

• ​High Cost:​​ Raw material and complex manufacturing (high-T/P cure) make FFKM significantly more expensive. ​Total Cost of Ownership (TCO)​​ analysis is crucial: High upfront costs are often offset by eliminating downtime, repairs, product loss, and safety risks.
• ​Limited Low-T Flexibility:​​ Standard grades lose elasticity below ~-25°C.
• ​Mechanical Properties:​​ Abrasion/tear resistance may require specific compounds/designs.
• ​Critical Selection:​​ Must match exact media, T/P, dynamics. Consult specialists.

​Table 2: Simplified TCO Example (Critical Equipment Seal)​​

Note: Highly simplified example. Actual TCO includes leakage risk, product loss, safety penalties. Downtime costs vary widely.

​Conclusion: The Last Line of Defense​

FFKM seals represent the zenith of chemical/thermal resistance in today’s elastomer technology. Where conventional rubbers and FKM fail in extreme environments, FFKM serves as the engineer’s last resort. While initial investment is high, its unparalleled reliability, safety assurance, production continuity, and ​demonstrated TCO advantages​ make FFKM the indispensable sealing fortress for critical industrial applications demanding ​zero leakage, ​long service life, and ​ultra-high purity.
