Guide rings are core components in hydraulic and pneumatic systems, primarily providing support and precise guidance. They ensure smooth operation of reciprocating components such as pistons and piston rods while preventing direct metal-to-metal contact, effectively reducing friction and wear. Their performance directly impacts the operational efficiency, service life, and reliability of the entire equipment system. Among various engineering materials, the composite material composed of polytetrafluoroethylene (PTFE) reinforced with glass fibers has become the preferred choice for high-end guide rings in extreme working conditions due to its outstanding comprehensive performance.
Polytetrafluoroethylene (PTFE), known as the “Plastic King,” is a high-performance fluoropolymer. It possesses unique chemical stability, resisting corrosion from strong acids, strong alkalis, oxidizers, and most organic solvents. It exhibits an extremely low coefficient of friction (typically between 0.05–0.10), excellent high and low-temperature resistance (operating temperature range from -100°C to 260°C), and good electrical insulation properties. However, pure PTFE also has some inherent drawbacks, such as poor creep resistance, insufficient wear resistance, low thermal conductivity, and limited mechanical strength.
To overcome these limitations, glass fibers are introduced as reinforcing fillers into the PTFE matrix. The addition of glass fibers significantly enhances the material’s overall performance: wear resistance is markedly improved, with glass fibers forming a reinforcing skeleton that effectively resists frictional wear; mechanical strength is substantially increased, including compressive strength, hardness, and load-bearing capacity; thermal conductivity is improved, aiding in dissipating frictional heat and preventing thermal accumulation; and the coefficient of thermal expansion is reduced, enhancing dimensional stability and minimizing deformation caused by temperature fluctuations.
This composite material fully leverages a synergistic effect: the PTFE matrix provides self-lubricating properties and chemical stability, while the glass fibers contribute mechanical reinforcement. The resulting product maintains the low-friction characteristics of PTFE while gaining enhanced mechanical properties, enabling it to meet the demands of more severe application environments. For instance, compared to pure PTFE, a composite with 25% glass fiber content demonstrates significant improvements: the coefficient of friction is reduced by approximately 20-40% (to 0.08–0.12), wear resistance is improved by several hundredfold (to an extremely low rate of about 0.0002 g/h), compressive strength is increased by about 130% (reaching 39.2 MPa), and thermal conductivity is enhanced by approximately 227% (reaching 1.21 kcal/m·h·°C), all while maintaining the same broad operating temperature range (-100°C to 260°C).

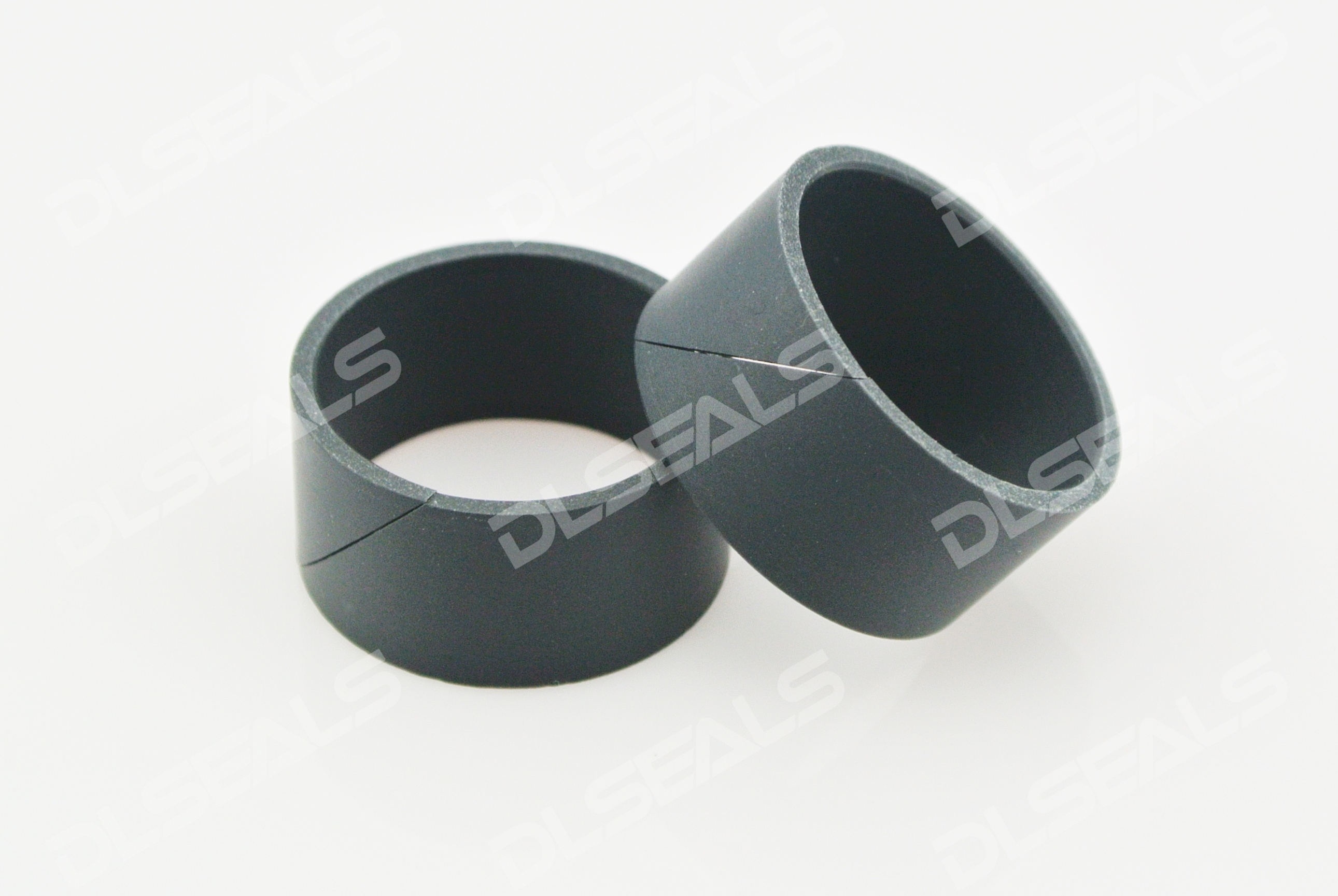

PTFE with glass fiber guide rings demonstrate multiple performance advantages due to their unique material combination, making them indispensable key components in numerous applications. Their exceptional wear resistance and long service life are among the most notable benefits. The wear resistance of glass fiber-reinforced PTFE guide rings is hundreds of times greater than that of pure PTFE, with a service life exceeding 8,000 hours under certain conditions. For example, in nitrogen compressors, their service life can be up to six times longer than conventional materials. They also exhibit high thermal stability and improved thermal conductivity. The addition of glass fibers significantly enhances the composite’s thermal conductivity, allowing operation at higher speeds and loads. The material maintains stable performance across a wide temperature range from -100°C to 260°C, adapting to extreme temperature environments. Furthermore, they provide low friction and self-lubricating properties. Even under oil-free lubrication conditions, PTFE-based guide rings maintain a low coefficient of friction. Through innovative microporous oil reservoir design, the coefficient of friction can be reduced by up to 60% compared to a smooth surface, enabling smoother reciprocating motion. Additionally, they offer high compressive strength and creep resistance. Glass fiber reinforcement significantly increases the guide ring’s compressive strength and improves creep resistance by nearly three times, enabling it to withstand working pressures up to 35 MPa. Finally, they retain excellent chemical resistance and corrosion resistance. Maintaining PTFE’s inherent chemical stability, they resist strong acids, strong alkalis, oxidizers, and organic solvents, making them suitable for corrosive media environments.
These guide rings find extensive applications across various industries. In heavy industry and engineering machinery, such as high-pressure hydraulic systems, excavators, cranes, and injection molding machines, they are used for piston and piston rod guidance in hydraulic cylinders, bearing heavy loads and reducing friction and wear. In compressors and vacuum equipment, particularly in oil-free lubrication compressors (especially nitrogen compressors), they address the short service life issues of traditional materials, significantly reducing maintenance costs and downtime. In the aerospace and military equipment sectors, applications include aircraft landing gear, missile boosters, and spacecraft actuator systems, where they adapt to extreme temperatures, high vacuum, and strong vibration environments. Within food and pharmaceutical equipment, leveraging PTFE’s non-toxic, tasteless properties and compliance with food-grade requirements, they are used in food processing machinery and pharmaceutical equipment to meet hygiene and high cleanliness standards. In the automotive industry, they are employed in automotive shock absorbers, clutch systems, and power steering devices, providing smooth reciprocating motion, reducing friction and noise, and enhancing ride comfort and system reliability. The performance requirements and contributions of guide rings vary by sector: engineering machinery demands high pressure resistance, extrusion resistance, and wear resistance for extended hydraulic cylinder life and reduced leakage; compressors require self-lubrication, low friction, and heat resistance for greatly increased service life and less maintenance; aerospace needs thermal stability and low outgassing for reliable actuation and reduced failure risk; food and pharmaceutical applications necessitate chemical resistance and food-grade compliance to avoid contamination and meet hygiene standards; and the automotive industry relies on wear resistance, low friction, and creep resistance for improved comfort and reduced maintenance.
In summary, PTFE with glass fiber guide rings represent a perfect integration of polymer materials science and industrial application. By combining the exceptional chemical stability and self-lubricating properties of PTFE with the mechanical enhancements provided by glass fibers, this composite material successfully overcomes the limitations of pure PTFE in terms of wear resistance, creep resistance, and thermal conductivity, creating a high-performance engineering material suitable for demanding working conditions. At the industrial application level, PTFE with glass fiber guide rings have become core components in many critical fields, providing indispensable support for the efficient and reliable operation of modern mechanical equipment. With the continuous advancement of new material technologies and manufacturing processes, this composite material will continue to evolve, laying a solid foundation for future industrial innovation and remaining the material of choice for engineers tackling technical challenges.
