Sealing rings are the core components of hydraulic jacks, directly determining their sealing performance, pressure-bearing capacity, and service life. Below is a detailed breakdown of key knowledge about sealing rings:
I. Core Functions of Sealing Rings
- 1.Prevent Hydraulic Oil Leakage
• Ensure hydraulic oil does not leak from the sealed oil circuit, maintaining stable pressure (basis of Pascal’s Law). - 2.Block External Contaminants
• Prevent dust, moisture, etc., from entering the hydraulic system, avoiding oil contamination and part wear. - 3.Reduce Friction Loss
• Some seals (e.g., guide rings) minimize hard friction between metal parts, extending piston/cylinder life.
II. Types & Locations of Sealing Rings
| Type | Location | Features |
|---|---|---|
| O-ring | Static seals (end caps, valve block interfaces) | Low cost, high elasticity; fills gaps via compression (seals tighter under high pressure) |

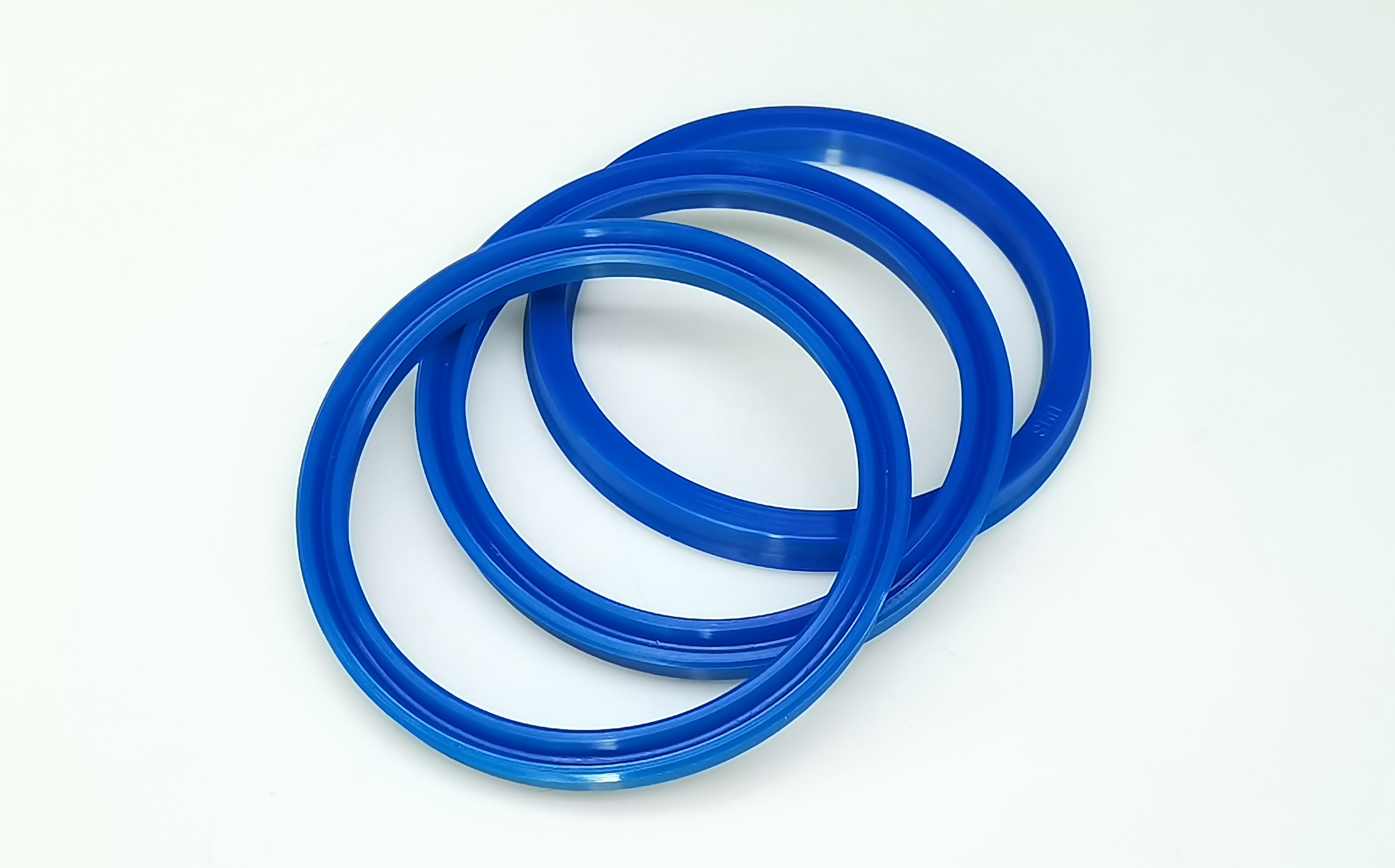

| U-ring (lip seal) | Dynamic seals (piston, piston rod) | Lip structure automatically tightens against the cylinder wall under pressure; low friction at low pressure, enhanced sealing at high pressure |
| V-combo seals | High-pressure piston rod seals | Multi-layer stacking (3–5 segments); high pressure resistance (>70 MPa), anti-extrusion |
| Wiper seal | Outer end of piston rod | Scrapes dust/oil from the rod surface; first barrier against contamination |
| Guide/wear ring | Both sides of piston | Prevents metal-to-metal contact; reduces friction and eccentric wear (keeps piston centered) |
III. Material Selection & Comparison
Common materials must meet four criteria: oil resistance, pressure resistance, temperature resistance, wear resistance.
| Material | Properties | Application Scenario |
|---|---|---|
| Nitrile (NBR) | Excellent oil resistance (mineral oil); cost-effective; temp: -30°C~120°C | Low/medium-pressure jacks (O-rings/U-rings) |
| Polyurethane (PU) | Superior wear/extrusion resistance; high pressure tolerance; poor hydrolysis resistance | High-pressure piston seals (U/V-rings) |
| Fluororubber (FKM) | High-temp resistance (-20°C~200°C); chemical/fuel corrosion resistance; expensive | High-temp/special oil (e.g., aviation) |
| PTFE (Teflon®) | Ultra-low friction; chemical corrosion resistance; requires rubber elastomer support | Guide rings, high-speed seals |
IV. Common Causes of Seal Failure
- 1.Aging/Cracking
• Long-term exposure to heat/ozone hardens rubber, losing elasticity (NBR degrades rapidly >120°C). - 2.Extrusion Damage
• Overpressure or excessive gaps force seals into metal crevices (high-pressure applications require anti-extrusion rings). - 3.Wear/Scratches
• Oil contamination, piston rod rust, or scoring (scratches >5µm can breach seals). - 4.Improper Installation
• Overstretching causes permanent deformation; burrs in seal grooves damage lips.
V. Maintenance & Replacement Guidelines
- 1.Regular Inspection
• Check for oil leaks (oil droplets on the rod = main seal failure); weak lifting may indicate internal leakage (piston seal damage). - 2.Cleaning & Protection
• Retract the piston rod after use; release pressure during storage. - 3.Professional Replacement
• Replace seals in sets matching OEM size/material; use dedicated tools (avoid forceful squeezing). - 4.Lubrication Requirements
• Apply hydraulic oil to seals during assembly (dry friction burns lips).
⚠️ Warning: Hydraulic oil leaks/seal failure may cause:
• Sudden load drops (Danger!)
• Insufficient system pressure (fails to lift)
• Contaminants jamming hydraulic valves
VI. Technological Trends
• Composite Seals: e.g., PTFE coating + rubber base (low friction + high elasticity)
• Smart Monitoring: Embedded sensors detect abnormal pressure/temperature in seals.
• Long-life Materials: Hydrogenated nitrile rubber (HNBR) with temperature resistance up to 150°C.
Though small, sealing rings are the “lifeline” of hydraulic jacks. Proper selection and maintenance significantly enhance reliability—especially in automotive repair and heavy machinery, where safety redundancy is paramount!
