In the oil, natural gas, and chemical industries, handling natural gas rich in hydrogen sulfide (H₂S), often called “sour gas,” presents extreme challenges to equipment reliability and safety. Hydrogen sulfide is not only highly toxic, flammable, and explosive but also strongly corrosive. It can cause metal sulfide stress cracking (SSC) and hydrogen-induced cracking (HIC), while also causing swelling, hardening, and degradation of non-metallic sealing materials. Therefore, selecting the appropriate sealing components for such media is crucial, directly impacting production safety, environmental protection, and the long-term operation of equipment.
I. Operating Condition Analysis and Core Challenges
Before selecting seals, it is essential to fully understand the media’s properties:
- Corrosiveness of Hydrogen Sulfide (H₂S): H₂S dissolves in water to form a weak acid, which strongly corrodes many elastomers and metals. It can break the molecular chains of sealing materials, causing them to lose elasticity, become brittle, or excessively swell, leading to failure.
- Properties of Natural Gas (Primarily Methane): Natural gas itself is a non-polar medium and can cause swelling in certain rubbers. Systems are often high-pressure, requiring seals to have excellent extrusion resistance and low compression set.
- Combined Operating Conditions: Media temperature, pressure, concentration, and the presence of water (which significantly exacerbates H₂S corrosion) are all critical factors. Common operating temperatures range from ambient to over 100°C.
II. Recommended Seal Material Selection
Based on the above challenges, the following sealing materials are proven reliable for natural gas environments containing hydrogen sulfide:
1. Perfluoroelastomer (FFKM)
- Performance: This is currently the highest grade option, known as the “king of elastomers.” It offers excellent chemical inertness, resisting almost all chemicals, including concentrated sulfuric acid, strong bases, and aggressive hydrogen sulfide. Its high-temperature resistance is outstanding (continuous use up to 280-300°C+).
- Application: Extreme conditions with high temperature, high pressure, and high H₂S concentration, such as wellhead equipment, high-pressure valves, and compressor seals. Although costly, it is the primary choice for ensuring absolute safety.
- Common Grades: Chemraz®, Perlast®, etc.
2. Hydrogenated Nitrile Butadiene Rubber (HNBR)
- Performance: Compared to standard nitrile rubber (NBR), HNBR offers improved heat resistance, chemical resistance, and aging resistance through a hydrogenation process. It provides good resistance to oil and gas media and moderate concentrations of H₂S, along with high mechanical strength and good wear resistance.
- Application: Medium temperature (typically -25°C to 150°C), medium pressure, and moderate corrosion conditions. It is a cost-effective option often used for valve seals, O-rings, and flange gaskets.
- Note: Not suitable for extreme environments with very high H₂S concentration and high temperature simultaneously.
3. Fluoroelastomer (FKM/Viton®)
- Performance: FKM has long been one of the most widely used high-performance elastomers in sour gas environments. It offers excellent resistance to high temperatures (approx. 200-230°C), oils, and many chemicals (including H₂S).
- Application: Suitable for most natural gas environments containing H₂S, it is an ideal choice balancing performance and cost. Widely used for O-rings, V-rings, flange gaskets, and valve stem seals.
- Important Note: Be aware of FKM’s poor low-temperature performance and potential long-term performance degradation in steam or hot water. Confirm the specific compound is suitable for sour service.
4. Polytetrafluoroethylene (PTFE) and Its Composites
- Performance: PTFE, known as the “king of plastics,” offers nearly perfect chemical inertness, completely resisting H₂S and acids, bases, and solvents at any concentration. Its temperature range is extremely wide (-180°C to 260°C), and it has a very low coefficient of friction.
- Application: Commonly used for packing rings, valve seats, anti-extrusion rings, and lip seals. Pure PTFE is prone to cold flow and has poor resilience, so it is often compounded with glass fiber, graphite, carbon fiber, etc., to improve mechanical strength, creep resistance, and wear resistance.
- Forms: Often used for molded seals or machined packing rings.
5. Metal Seals
- Performance: For ultra-high pressure, ultra-high temperature, or extreme conditions where elastomers are unsuitable, metal seals are the ultimate solution. Common materials include stainless steel 316L, Alloy 625 (Inconel 625), Alloy C276 (Hastelloy C276), and other corrosion-resistant alloys.

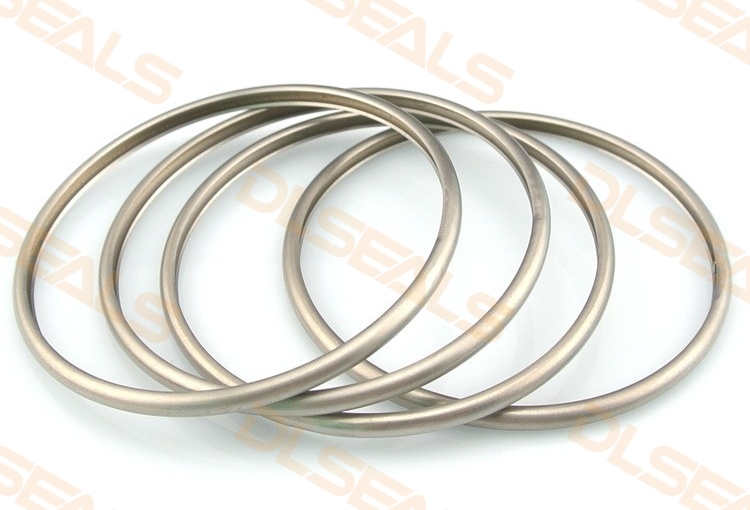

- Forms: Typically metal O-rings (solid or hollow), metal C-rings, spring-energized seals. They rely on the elastic deformation of metal to achieve a seal and can withstand very high pressures and temperatures.
- Application: Wellhead Christmas trees, high-pressure valves, reactors, and pipeline connections.
III. Materials to Avoid
- Standard Nitrile Rubber (NBR): Insufficient resistance to H₂S and high temperatures; degrades rapidly.
- Ethylene Propylene Diene Monomer (EPDM): While resistant to steam, it has very poor resistance to oils and hydrocarbons, swelling severely in oil.
- Neoprene (CR): Generally poor acid resistance; performance is far inferior to FKM/HNBR.
- Some Polyurethanes (PU): Prone to hydrolysis and not resistant to H₂S corrosion.
IV. Selection and Considerations
- Confirm Operating Parameters: Temperature, pressure, H₂S and CO₂ concentration, and water presence are the basis for selection.
- Refer to Standards: Follow industry standards such as NACE MR0175/ISO 15156 (Petroleum and natural gas industries — Materials for use in H₂S-containing environments in oil and gas production), which provides detailed guidance on selecting metallic and non-metallic materials.
- Material Compatibility Testing: When uncertain, always request chemical compatibility charts from the seal supplier or perform immersion tests simulating operating conditions to verify performance.
- Seal Design: Excellent materials require合理的 design (appropriate compression ratio, use of anti-extrusion rings) to perform optimally.
- Supplier Qualifications: Choose qualified, experienced seal suppliers to ensure material authenticity and reliable manufacturing processes.
Conclusion
When handling natural gas and hydrogen sulfide media, safety is the top priority. The selection of sealing components should not be primarily based on cost but on the reliability and suitability of the material.
- Primary Recommendation: For most conditions, Fluoroelastomer (FKM) is an economical and reliable choice.
- Extreme Conditions: For high temperature, high pressure, and high corrosion, Perfluoroelastomer (FFKM) or special alloy metal seals are a necessary investment.
- Special Applications: PTFE Composites and Hydrogenated Nitrile Rubber (HNBR) perform excellently within their respective applicable ranges.
Choosing the right sealing component is about building a safe, reliable, and long-lasting barrier. It is a critical technical decision for ensuring personnel safety, preventing environmental pollution, and guaranteeing production continuity.
