In the transmission and lubrication systems of industrial equipment, the reliability of sealing technology directly determines the operational performance and service life of machinery. The skeleton oil seal, one of the most fundamental and widely used rotary shaft seals, has proven its maturity and practicality over the long term. This article aims to objectively and systematically explain the definition, typical structure, working principle, key performance indicators, and main application areas of skeleton oil seals.
1. Definition and Function of Skeleton Oil Seals

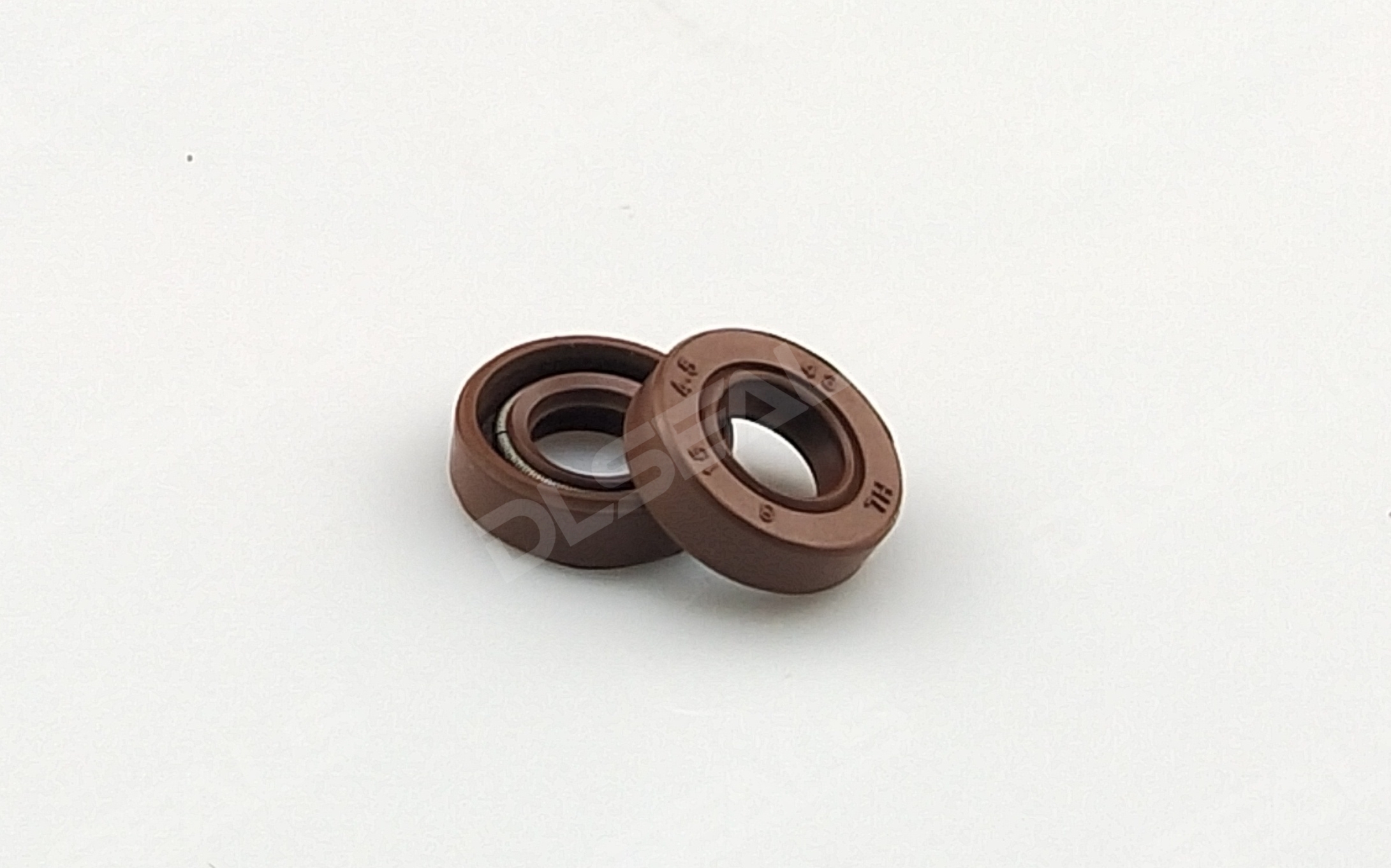

A skeleton oil seal, standardly named a “Radial Lip Seal,” is an elastomeric seal used for rotating shafts. Its core functions include:
- Retaining Lubrication:Effectively preventing the working media (e.g., lubricating oil, grease) inside mechanical equipment from leaking out along the clearance of the rotating shaft.
- Excluding Contamination:Effectively blocking external contaminants such as dust, mud, water, and other foreign particles from entering the equipment, thereby protecting core components like bearings and gears.
This seal is named for the metal skeleton embedded within to enhance its structural integrity. It is an indispensable basic component in industries such as automotive, engineering machinery, hydraulic systems, and home appliances.
2. Analysis of the Typical Structure of a Skeleton Oil Seal
A standard skeleton oil seal is a composite consisting of three key parts, each with a specific role:
- Metal Skeleton:
- Material and Process:Typically made from low-carbon steel plate formed by cold stamping.
- Function:Serves as a structural reinforcement, providing support for the elastomer. It ensures the seal maintains its shape when press-fitted into the housing bore and withstands installation pressures to prevent distortion.
- Elastomeric Sealing Lip:
- Material:The main sealing lip is made from high-performance synthetic rubber, commonly Nitrile Butadiene Rubber (NBR), Fluorocarbon Rubber (FKM), or Acrylate Rubber (ACM), selected based on the operating media and temperature.
- Function:This is the core component performing the sealing action. Its edge forms an interference fit with the rotating shaft surface, creating initial pressure. The “air side” of the lip often features a pumping rib(helical or wavy pattern), which generates hydrodynamic effects when the shaft rotates, pumping any escaping fluid back into the sealing chamber.
- Garter Spring:
- Material:Usually made of stainless steel.
- Function:Provides a continuous, uniform radial force to the sealing lip. This automatically compensates for normal wear of the lip material, maintaining stable sealing contact pressure throughout its service life.
3. Working Mechanism of Skeleton Oil Seals
The sealing effectiveness of a skeleton oil seal is based on a dynamic balance:
- Static Sealing:When the equipment is stopped, sealing is achieved through the lip’s interference fit and the spring’s radial force.
- Dynamic Sealing:When the shaft rotates, the mechanism is more complex:
- Formation of a Hydrodynamic Lubricating Film:The high-frequency micro-motion of the shaft draws an extremely thin (micrometer-level) film of lubricant between the lip and the shaft. This film is crucial for effective lubrication and preventing overheating and burning of the lip.
- Pumping Effect:The pumping rib on the lip acts like a miniature unidirectional pump when the shaft rotates, generating hydrodynamic pressure directed towards the inside of the housing, forcing any attempting-to-leak fluid back into the chamber.
Thus, the ideal sealing condition is a dynamic balance between “micro-lubrication”and “zero leakage,”not absolute rigid contact.
4. Key Application Areas of Skeleton Oil Seals
Skeleton oil seals are used in almost all industries involving rotating shaft sealing:
- Transportation:Front and rear crankshaft seals, transmissions, drive axles, and wheel hubs in automobiles.
- Heavy Machinery:Hydraulic systems, travel motor reducers in construction machinery (e.g., excavators, loaders).
- Industrial Equipment:Shaft end seals for various pumps, fans, compressors, and gearboxes.
- Consumer Appliances:Seals for washing machine motors, air conditioner compressors.
5. Key Points for Selection and Installation
Correct selection and installation are prerequisites for ensuring performance. The following factors must be considered:
- Media Compatibility:The seal material must resist the working media (e.g., engine oil, gear oil, hydraulic fluid, fuel) without swelling or degrading.
- Operating Temperature Range:Select the rubber material based on the equipment’s continuous and peak operating temperatures (e.g., NBR for -40~120°C, FKM for -20~200°C).
- Surface Speed:The rotational speed of the shaft directly affects lip temperature and wear; confirm the seal’s applicable speed range.
- Dimensional Accuracy and Surface Finish of Shaft and Housing:The surface hardness, roughness of the shaft, and the tolerance of the housing bore critically impact sealing effectiveness and lifespan.
- Standardized Installation Procedures:Mandatory use of proper tools ensures the seal is pressed in perpendicular to the shaft axis. Strict control over shaft chamfering, lip lubrication, and other steps is essential to avoid premature failure due to installation damage.
Conclusion
The skeleton oil seal, as a classic and efficient solution for rotary shaft sealing, boasts mature technology and extensive application experience. Despite the continuous emergence of new materials and structures, the skeleton oil seal remains the preferred sealing solution for most conventional applications due to its excellent cost-effectiveness and reliability. A deep understanding of its technical principles and adherence to standardized selection and application procedures are crucial for ensuring the safe, stable, and long-term operation of industrial equipment.
