Star Seals: Revolutionizing Dynamic Hydraulic Sealing

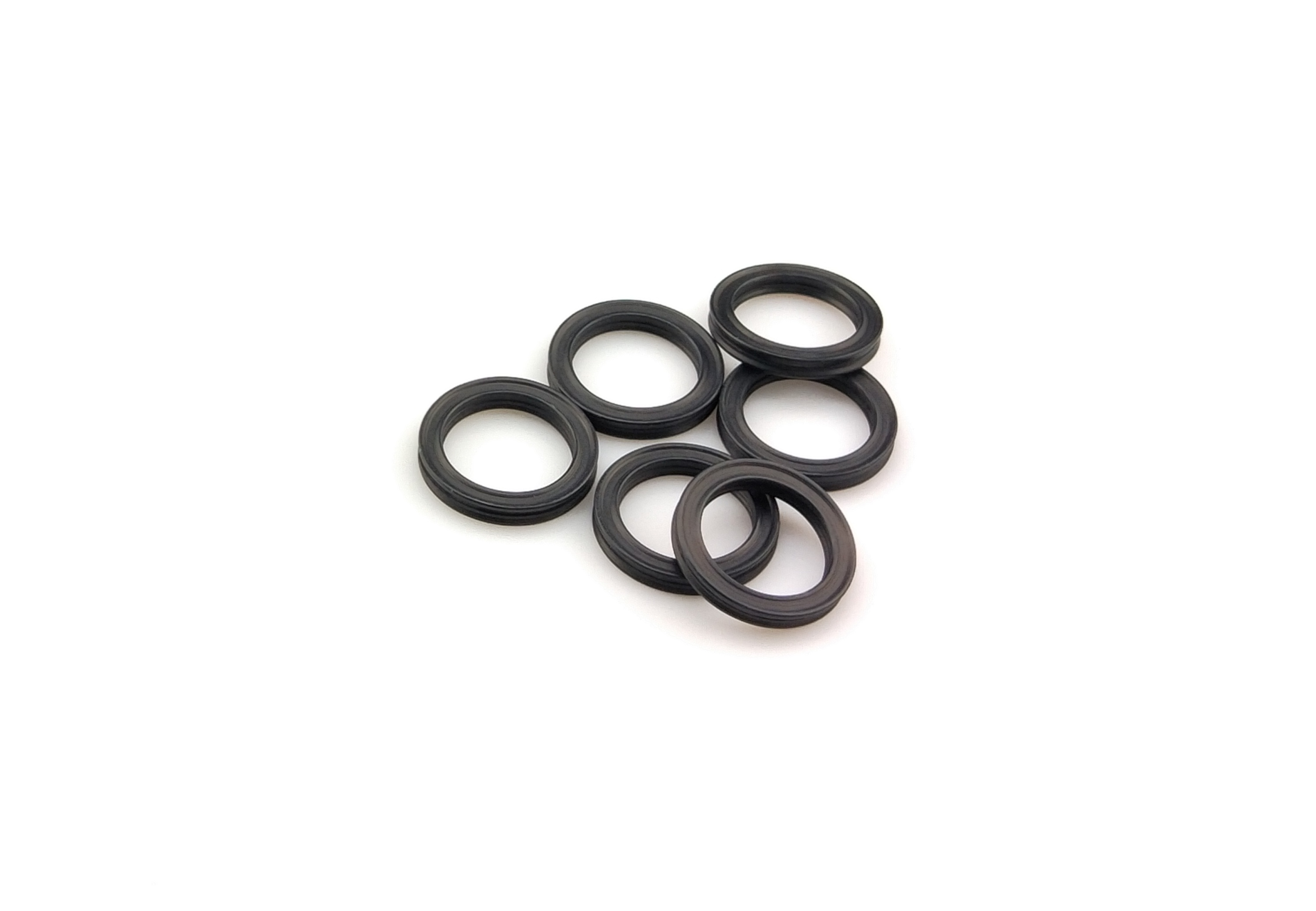

Star Seals

I. Structural Essence: Quadruple-Lip Synergy​

https://example.com/star-seal-cross-section.jpg

(Four lips create dual-seal barriers with 90° symmetry)
​Geometric Innovation​

Four sealing lips at 90° intervals
Inter-lip grooves form ​self-lubricating reservoirs​
Tapered lip edges (0.3mm→0.1mm) reduce contact pressure



​II. Three Key Performance Breakthroughs​

ParameterStar SealU-RingImprovement​Rotation Resistance​360° adaptiveUnidirectionalBias wear ↓82%​Leakage Rate​≤0.5 ml/min3-8 ml/minOil loss ↓90%​Max Pressure​60 MPa40 MPaCapacity ↑50%​Service Life​5,000 km2,000 kmLifespan ↑2.5x

Data: Freudenberg Industrial Test Report

​III. Industry Validation​
​Wind Turbine Pitch Systems​

Conditions: 30 m/s wind loads, high-frequency cycles
Result: Seal life extended from 6mo → 3 years
Value: Maintenance costs ↓55%



​Tunnel Boring Machine Hydraulics​

Challenge: 40MPa pulsating pressure + abrasive particles
Solution: Polyurethane star seal + PTFE wear ring
Outcome: Oil change intervals ↑4x

​IV. Selection Guidelines​

​Pressure Matching​



25MPa requires PTFE wear rings
​Material Selection Matrix​

ApplicationMaterialPropertiesStandard HydraulicsHNBR-40℃~150℃ rangeAbrasive EnvironmentsPU+PTFE coatingWear resistance ↑300%Food/PharmaEPDMFDA-compliant



​Why Choose Star Seals?​​

80% reduction in hydraulic leaks
50% lower friction = $10k+ annual energy savings
Error-proof installation (no orientation required)
“At XCMG excavator tests, star seals extended cylinder overhaul intervals from 2,000 to 5,000 operating hours.”
—Construction Machinery Sealing Technology Whitepaper
​Conclusion:​​ Star seals deliver reliability through quadruple-lip synergy:
✓ Eliminates rotational twisting failures
✓ Zero leakage at 60MPa
✓ 2.5x longer service life
​This seals the shift toward zero-downtime hydraulic systems.​
