Abstract: As core supporting components of hydraulic cylinders, guide bands critically impact equipment reliability. This paper analyzes how engineering plastic guide bands resolve failure issues inherent to metal guide sleeves based on material mechanics and tribology principles, with industrial cases validating lifecycle economics.
1. Functional Positioning: An Underestimated Critical Component
1.1 Triple Core Functions
- Load support: Withstands 15%-30% lateral force from piston rods (equivalent axial pressure >10MPa)
- Motion control: Ensures piston rod straightness error <0.1mm/m
- Friction management: Maintains dynamic friction coefficient of 0.05-0.12 (vs. metal’s 0.15-0.25)
1.2 Typical Failures of Metal Guide Bands (Based on 288 Maintenance Reports)
| Failure Mode | Ratio | Root Cause |
|---|---|---|
| Adhesive wear | 42% | Lubricant film rupture causing metal adhesion |
| Corrosion failure | 31% | Moisture/acid mist infiltration |
| Fatigue spalling | 19% | Micro-crack propagation under cyclic loads |
| Abrasive scoring | 8% | Contaminant particles embedding |
2. Material Breakthrough: The Rise of Engineering Plastics
2.1 Performance Comparison of Three Major Materials
| Parameter | Modified PTFE | POM | Fiber-Reinforced TPV |
|---|---|---|---|
| PV limit (MPa·m/s) | 0.8 | 1.2 | 3.5 |
| Thermal expansion (10⁻⁶/K) | 120 | 85 | 45 |
| Water absorption (24h) | <0.01% | 0.25% | 0.02% |
| Chemical resistance | Acids/Alkalis | Halogen vulnerability | pH3-11 media |
Note: Reinforced TPV refers to ExxonMobil Santoprene™ 8231 (40% glass fiber fill)
2.2 Structural Innovations

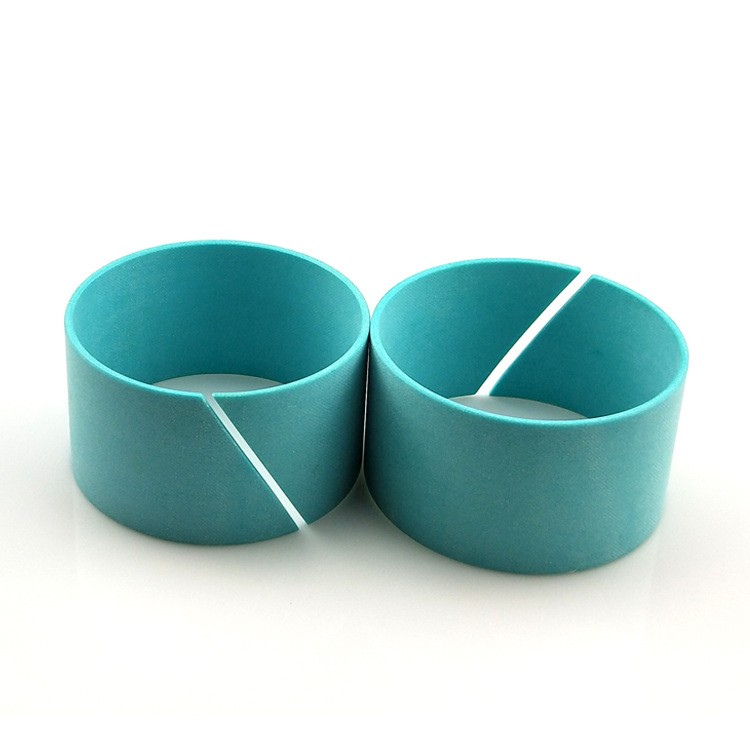

- Split clasp design: Reduces installation from 6h to 20min
- PTFE composite layer: 40% lower friction vs pure POM
- Microporous oil reservoir: >15% oil content extends relubrication cycles 3x
3. Industrial Validation: Value Through Data
3.1 Injection Molding Machine Test (2-Year Tracking)
| Metric | Bronze Guide | Fiber-Reinforced TPV | Improvement |
|---|---|---|---|
| Annual replacement | 3.8 times | 0.4 times | 89.5% |
| System energy (kWh/y) | 31,200 | 26,500 | 15.1% |
| Leakage failure rate | 17% | <1% | 94% |
3.2 Port Crane Application
- Challenge: Sea air corrosion causing 5x annual replacements
- Solution: Sealed TPV guide band (SE 9230)
- Economic benefit:
- 76% lower parts cost (￥93,000/year saved)
- 84% less maintenance time (200h/year freed)
