The “Last Mile” of Hardcore Sealing: Deep Dive into Surface Treatment Technologies for Metal Seals

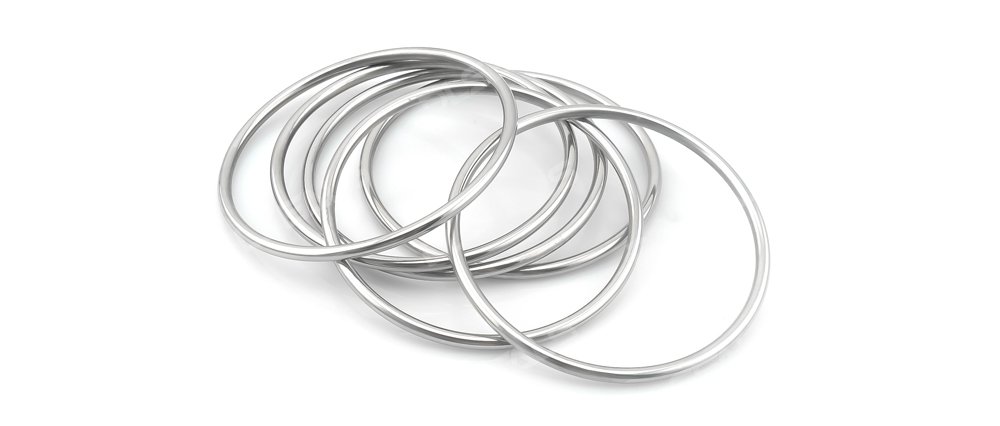

In extreme operating conditions—such as ultra-high vacuum, cryogenic temperatures (liquid hydrogen/nitrogen), highly corrosive environments, or ultra-high pressure (exceeding 100 MPa)—polymer seals often fail due to material degradation or insufficient mechanical strength. In these scenarios, Metal Seals become the only viable choice.

However, achieving a perfect microscopic fit through rigid metal-to-metal contact is inherently difficult. Surface Treatment is the core technology that bridges this gap, often referred to as the “last mile” in optimizing metal sealing performance.

1. Why Do Metal Seals Rely on Surface Treatment?

From a microscopic perspective, even a precision-ground metal flange surface consists of “peaks” and “valleys.” Metal seals are typically constructed from high-strength alloys with elastic recovery capabilities, such as Inconel 718 or 316L Stainless Steel.

Because the base material is extremely hard, physical compression alone cannot fill microscopic voids. By applying a low-hardness, high-plasticity coating or plating, the seal can achieve “plastic flow” under bolt preload. This allows the surface layer to “embed” into the micro-roughness of the flange, creating a molecular-level barrier against leakage.

2. Mainstream Surface Treatment Technologies and Applications

Depending on the specific requirements, surface treatments for metal seals are generally categorized into soft metal plating and high-performance coatings:

A. Soft Metal Electroplating

This is the most widely used treatment, involving the deposition of a highly ductile metal onto the sealing surface.

• Silver Plating: The most versatile choice. Silver offers excellent anti-galling properties (preventing cold welding) and moderate hardness. It is ideal for aero-engines and high-temperature bolted joints, withstanding temperatures up to 650°C.

• Copper Plating: Commonly used in hydraulic systems or general industrial high-pressure applications. Copper provides excellent plasticity at a relatively low cost but may fail in strongly oxidizing environments.

• Gold Plating: Designed specifically for Ultra-High Vacuum (UHV) and applications requiring extremely low gas permeability. Gold is chemically inert and achieves sealing deformation under very low loads.

• Nickel Plating: Primarily used to enhance corrosion resistance, often serving as a sub-layer for other platings or for specific chemical media.

B. PTFE Coating

For certain low-to-medium temperature applications, a thin layer of PTFE is sprayed onto the metal ring to reduce friction and improve immediate seating.

• Advantages: Extremely low friction coefficient and superior chemical resistance.

• Limitations: Temperature restricted (usually below 260°C) and prone to embrittlement in high-radiation environments.

3. Impact of Surface Treatment on Key Performance Indicators

4. Technical Essentials of Process Control

For professional manufacturers, the quality of metal seal surface treatment depends on several critical factors:

1. Thickness Control: Thicker is not always better. Excessive thickness can lead to peeling, while insufficient thickness fails to fill flange roughness. Plating thickness is typically controlled between 15–50 μm.

2. Adhesion: Metal substrates like Inconel naturally form dense oxide films. Pre-plating processes such as Strike Nickel or acid activation are crucial; otherwise, the plating may blister or detach under pressure cycles.

3. Substrate Roughness: The surface roughness ($Ra$) of the base metal before treatment must usually reach 0.4–0.8 μm to ensure a uniform plating distribution.

5. Conclusion

The performance of a metal seal is essentially a synergy between the “elastic recovery” of the base material and the “plastic adaptability” of the surface treatment layer. With the growth of hydrogen energy, semiconductor manufacturing, and deep-sea exploration, micro-to-nano scale surface treatments—especially for specialized media like high-pressure hydrogen—will become the new frontier of competition in the sealing industry.

By mastering the nuances of surface treatment, metal seals do more than just prevent leaks; they provide a rugged, failsafe barrier for the world’s most critical systems in the harshest environments.
