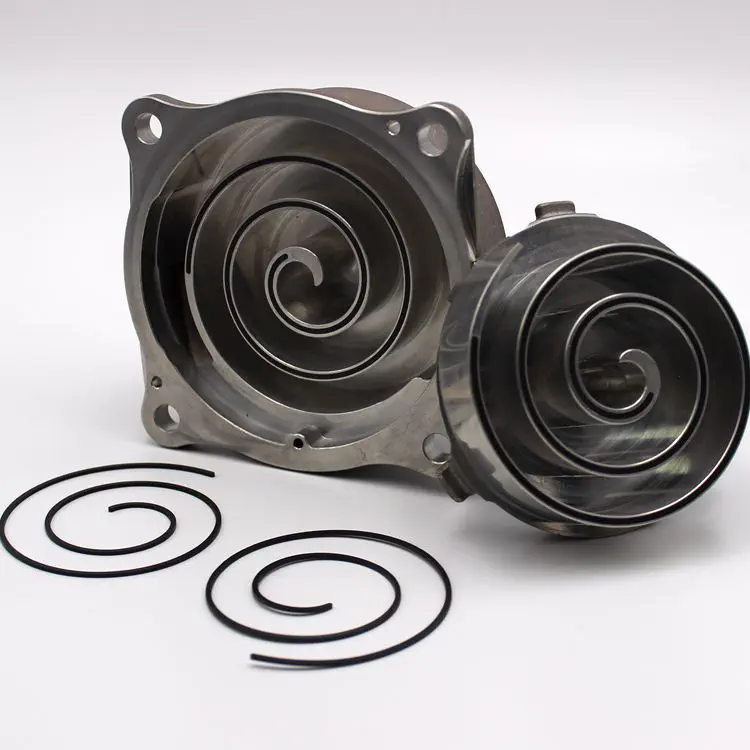

In high-end equipment sectors such as aero-engines, hydrogen compressors, and semiconductor vacuum systems, the vortex seal strip achieves nanoscale fluid control at rotating interfaces through precision logarithmic spiral geometry. Test data confirms:
- Critical speed: 42,000 rpm
- Helium leakage rate: ≤1.5×10⁻⁷ Pa·m³/s
- Friction power loss: 19% of mechanical seals
I. Core Structure & Working Principle
1. Three-Layer Functional Design
| Component | Material System | Performance Parameter |
|---|---|---|
| Spiral Groove Base | Ni-based superalloy (GH4169) | CTE: 3.8×10⁻⁶/K (20-800°C) |
| Seal Strip Array | Graphene-modified PI (PI/Gr) | Flexural strength: 452MPa @300°C |
| Radial Compensation | Belleville Springs (17-7PH SS) | Preload gradient: 50±3 N/mm |
2. Dynamic Sealing Mechanism
- Reverse Pressure Generation: Coriolis effect in spiral grooves creates 1:12 pressure ratio
- Nano Gas Film Barrier: 0.5-3μm gap maintains 10⁸ N/m³ gas film stiffness
- Self-Cleaning: Clears 99.2% of >5μm particles at >200m/s linear velocity
II. Performance Breakthroughs
1. Extreme Condition Adaptability
| Parameter | Range | Validation Case |
|---|---|---|
| Temperature Range | -253°C to 850°C | CJ-1000A Engine (2500 thermal cycles) |
| Speed Capacity | 42,000 rpm | NASA-Glenn Test Certification |
2. Zero Contamination Guarantee
| Medium | Leakage Rate | Certification |
|---|---|---|
| He | ≤1.5×10⁻⁷ Pa·m³/s | ASME PTC 19.1 |
| H₂ | 3.2×10⁻⁹ mol/(m·s) | ISO 15848-1 |
3. Energy Efficiency & Maintenance Revolution
| Metric | Mechanical Seal | Vortex Seal Strip | Improvement |
|---|---|---|---|
| Friction Loss | 35.2 kW | 6.8 kW | ↓80.7% |
| Cooling Water | 8.5 L/min | 0 | 100% savings |
| Maintenance Cycle | 3 months | 24 months | ↑700% |
III. Industrial Application Parameters
| Application Field | Linear Velocity (m/s) | Pressure Range | Service Life |
|---|---|---|---|
| Aero-Engines | 420 | 0.2-3.5 MPa | 25,000 hours |
| Hydrogen Compressors | 280 | 0.8-2.0 MPa | 40,000+ hours |
| EUV Lithography Vacuum | 9.5 | <10⁻⁵ Pa | Lifetime maintenance-free |
Technical Conclusion: Redefining Boundaries of Rotating Seals
The vortex seal strip achieves three revolutionary advances through geometric topology and materials science:
- Conquers Physical Limits: Covers -253°C to 850°C, withstands 42,000 rpm
- Ensures Purity: Molecular-level sealing (He leakage ≤1.5×10⁻⁷ Pa·m³/s)
- Reinvents Efficiency: 80.7% friction reduction, eliminates cooling systems (saves 4,500 tons water/year/unit)
When SpaceX’s Raptor engine operates at 1,056 rad/s, this micron-scale spiral line defends the frontiers of advanced engineering with nanoscale precision.
