In extreme environments with ultra-high pressure, elevated temperatures, and intense radiation, traditional O-rings or metal gaskets often fail due to plastic deformation or material degradation. Wills Rings® C-Seals (C-Seals) have emerged as the premier sealing solution for aerospace, nuclear power, and supercritical fluid systems through revolutionary elastic mechanical design, advanced materials science, and 50 years of engineering validation. This article explores the structural principles, material innovations, performance boundaries, and industry applications defining this pinnacle of sealing technology.
Core Design Philosophy

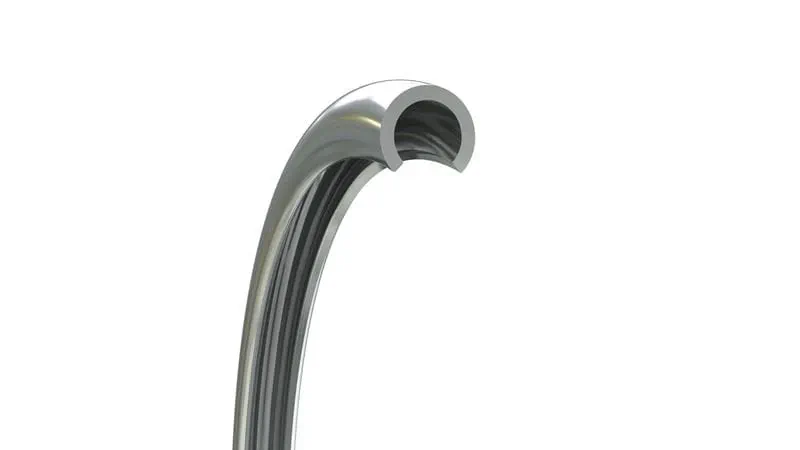

The C-Seal’s dual-arched elastic beam structure—featuring a distinctive “C” cross-section—enables triple-sealing contact (line-surface-line). Under pressure, the twin arches generate opposing elastic deformation to achieve self-energized sealing.
Low-Pressure Phase: Arch rebound provides initial sealing at minimal preload (0.1–0.5 MPa).
High-Pressure Operation: System pressure expands the arches radially, increasing sealing force proportionally (up to 3,000 MPa).
Compared to metal O-rings (dependent on plastic deformation) or spiral-wound gaskets (irreversible compression), C-Seals deliver over 95% elastic recovery—requiring 200x less preload than conventional solutions. Critical dimensions like arch height (typically 2.5mm for DN50 seals) and 30° contact angle optimize stress distribution while a 0.3mm free-gap accommodates thermal expansion.
Advanced Materials Engineering
Base materials are engineered for extreme service:
Inconel 718 (1,450 MPa tensile strength) withstands 700°C in jet engine combustors.
Hastelloy C-276 resists sulfuric acid corrosion at 400°C.
Pure Niobium operates at 1,200°C in fusion reactor first walls.
Specialized coatings enhance performance:
Molybdenum disulfide (MoS₂) reduces friction to 0.03 in satellite thrusters.
Gold plating prevents cold welding in deep-space instruments (e.g., James Webb Telescope).
Yttrium oxide (Y₂O₃) ion implantation counters neutron embrittlement (>10²¹ n/cm²).
Breaking Performance Boundaries
Validated pressure-temperature limits redefine feasibility:
Inconel 718 seals endure 3,000 MPa at 650°C (ASME BPVC III certified).
Niobium seals operate at 1,200°C under 800 MPa (per ITER design codes).
In 1,000 MPa supercritical water cycling tests at 300°C, C-Seals maintained leak rates below 1×10⁻⁶ mbar·L/s for over 100,000 cycles—20x longer lifespan than failing metal O-rings.
Transforming Critical Industries
Nuclear Power: Segmented Inconel 718 C-Seals with Y₂O₃ coating seal reactor vessels (>5m diameter, ≤0.1mm flatness). This extends maintenance cycles from 18 to 30 months, saving $200 million per outage.
Space Systems: Ti-6Al-4V C-Seals with Au/MoS₂ coating secure cryogenic LOX/methane engines (−183°C, 300MPa, >100g vibration), reducing leak rates to <0.01 g/s and mass by 60%.
Energy Systems: Haynes 282 C-Seals with AlCrN coating boost supercritical CO₂ turbine efficiency by 3% while cutting maintenance costs 40% at 650°C/250MPa conditions.
Precision Installation & Smart Monitoring
Critical protocols include:
Surface roughness control (Ra ≤0.8μm) and hardness >HRC 35
Laser-aligned flange parallelism (≤0.05mm/m)
3-stage bolt preloading with crisscross sequencing
0.2% thermal gap compensation (relative to flange diameter)
IoT-enabled sensors detect micro-leakage via 20kHz–1MHz acoustic emissions, while ANSYS-powered digital twins visualize real-time stress distribution for predictive maintenance.
Next-Generation Evolution
Emerging technologies push boundaries further:
Ceramic Matrix Composites: SiC/SiC seals for 1,600°C hypersonic vehicles.
Shape Memory Alloys: NiTiNb C-Seals self-recover after cryo-compression for reusable systems.
3D-Printed Lattice Structures: Topology-optimized designs reduce weight 30% with stiffness-graded arches.
Redefining Engineering Possibilities
Wills Rings® C-Seals transform sealing from a maintenance item to an enabling technology—their adaptive megapascal-scale contact stress allows 50% fewer bolts, elimination of heavy sealing grooves, and lifetime maintenance-free operation. From ITER fusion reactors to SpaceX Raptor engines, they don’t just withstand extremes; they expand the boundaries of system design.
