Under dual attacks of 400-500°C heat and high vacuum (≤10⁻³ Pa), conventional seals fail catastrophically – rubber carbonizes, metal creeps, outgassing contaminates chambers. This article reveals why only specialty materials work, with cost-benefit and engineering truths exposed.
I. Why Specialty Materials are Non-Negotiable
1. Three Killers of Conventional Materials
- Organics (Rubber/Plastics):
Pyrolyze above 327°C (FFKM limit), outgassing soars to 10⁻⁵ mbar·L/s (1000x over limit).
- Common Metals (304 SS):
Creep relaxation at 480°C, stress retention <60%.
- Standard Graphite Gaskets:
Oxidize uncontrollably! Mass loss begins at 420°C in air.
2. Victorious Materials’ Decisive Properties
| Material | Unique Edge | Certified Limits |
|---|---|---|
| Metal Bellows (Inconel 625) | Zero outgassing, anti-creep | >95% stress retention @650°C |
| Oxidation-Resistant Graphite | Near-zero CTE (∆T=500℃) | Outgassing ≤1.5×10⁻¹⁰ mbar·L/s |
| Mo-Coated Graphite | Oxygen barrier | 600°C in air (breakthrough) |
Painful Lesson: PV coating plant using 304 SS seals leaked at 10⁻³ mbar·L/s after 72h @480°C, scrapping $2M wafers.
II. Performance Breakdown
1. Metal Bellows Systems
- King of Dynamic Seals: Laser-welded bellows compensate ±5mm thermal shift.
- Critical Processes:
Argon-shielded pulse welding (HAZ<0.1mm) → Vacuum stress relief → Electropolishing (Ra≤0.4μm).
- Cost Reality: 1,200−3,000/pc (10x gaskets), but >10yr maintenance-free.
2. Oxidation-Resistant Graphite Gaskets
- Static Seal Value Champion: SiC additives enable 600°C air tolerance.
- Process Keys:
Graphite foil calendering → ZrP solution impregnation → 1,200°C sintering.
- Cost Advantage: 80−300/pc (1/10 bellows), ideal for static flanges.
III. Installation & Manufacturing Make-or-Break
1. Bellows Installation Commandments
- Precision Preload: Torque tolerance <±5% (over-compression crushes bellows):
Formula:
T = 0.2 × d × F(d: bolt dia., F: design load) - Coaxial Alignment: >0.05mm/m offset slashes lifetime 90%.
- Bake-Out Mandatory: 48h @200°C pre-bake (per SEMI F47) – skip and contaminate vacuum.
2. Graphite Gasket Pitfalls
- No Over-Compression: >35% compression fractures graphite (audible “crack” = failure).
- Surface Finish: Flange roughness Ra≤1.6μm (mirror finish optimal) – doubles leakage otherwise.
IV. Total Cost of Ownership Revolution
| Solution | Initial Cost | Service Life | 10-Year TCO* |
|---|---|---|---|
| Metal Bellows | $2,800/pc | >10 years | $2,800 |
| Oxidation-Resistant Graphite | $200/pc | 2 years | $1,000 |

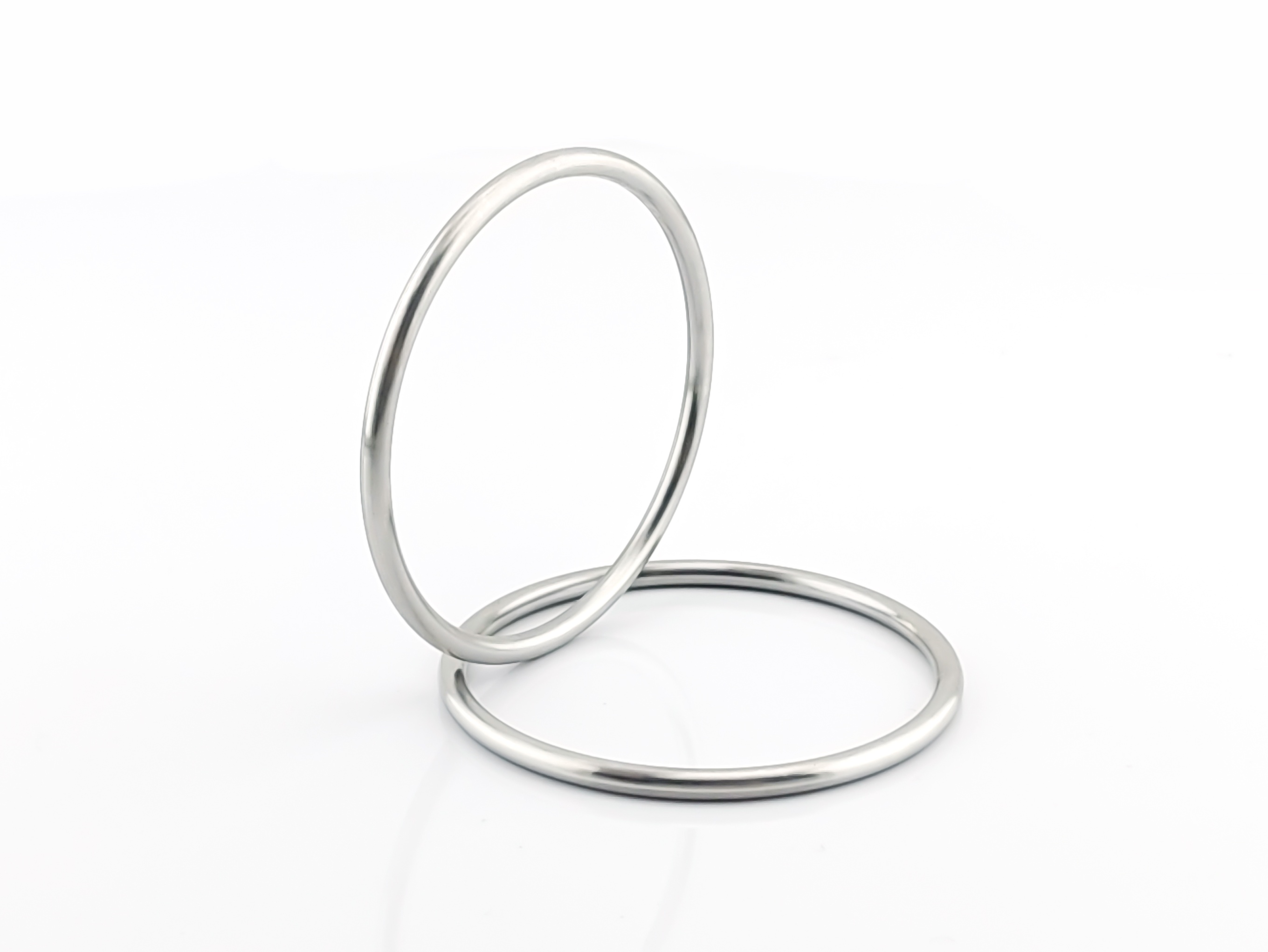

| Standard Metal O-ring | $30/pc | 3 months | $12,000 |
* Conditions: 450°C vacuum, 8,000 hr/yr operation
Conclusion: Bellows TCO is just 23% of O-rings, with near-zero downtime.
Engineering Verdict
- Dynamic Seals (Rotation/Movement):
Only metal bellows (Inconel 625/Haynes 230) – no compromises. - Static Seals (Flanges/Covers):
Prioritize oxidation-resistant graphite (cost-sensitive), or bellows + welded seals (zero-leak mission-critical).
Bleeding-Edge Warnings:
- Never trial rubber/plastic seals >400°C (even if sold as “HT”);
- Unbaked vacuum systems = ticking bombs;
- Installation precision dictates 90% of seal life – saving 100onalignmentmaycost1M.
Final Answer: Seal selection isn’t about cost, but system survivability. In 400-500°C vacuum hell, only right materials, precision execution, and standards compliance deliver reliable cost-performance equilibrium.
