Why High-Reliability Electronics Need Conductive Silicone Gaskets

As industries such as 5G communications, aerospace, defense electronics, marine engineering, and renewable energy continue to advance, electronic systems are becoming more compact, integrated, and sensitive to electromagnetic interference (EMI).

Modern electronic enclosures must do more than simply block electromagnetic radiation. They are also expected to provide:

• High shielding effectiveness
• Environmental sealing against dust and moisture
• Corrosion resistance in harsh conditions
• Long-term compression recovery
• Stable performance across wide temperature ranges

To meet these demanding requirements, Monel wire-filled conductive silicone gaskets have become one of the most reliable solutions for combining EMI shielding and environmental sealing in a single material.

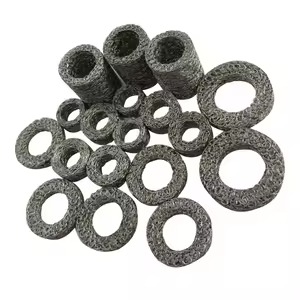

What Is a Monel Wire-Filled Conductive Silicone Gasket?

A Monel wire-filled conductive silicone gasket is a composite EMI shielding material made by embedding knitted Monel alloy wire mesh into a high-performance silicone elastomer.

This unique construction combines the benefits of both materials:

• The flexibility and sealing capability of silicone rubber
• The excellent electrical conductivity of Monel alloy
• Superior corrosion resistance
• Long-term mechanical durability

The result is a gasket capable of creating a continuous conductive path for EMI shielding while simultaneously providing protection against water, dust, and environmental contaminants.

Because of these advantages, Monel-filled conductive silicone gaskets are widely used in mission-critical electronic equipment operating in harsh environments.

Key Advantages of Monel Wire-Filled Conductive Silicone Gaskets

Outstanding EMI Shielding Performance

Monel alloy provides excellent electrical conductivity and stable contact resistance, enabling highly effective electromagnetic shielding.

Typical shielding effectiveness ranges from:

80 dB to 120 dB

This performance is sufficient for demanding applications including:

• Military electronics
• Radar systems
• Aerospace equipment
• Telecommunications infrastructure
• High-frequency electronic systems

Exceptional Corrosion Resistance

One of the biggest advantages of Monel alloy is its superior resistance to corrosion.

Monel, a nickel-copper alloy, performs exceptionally well in:

• Salt spray environments
• Marine atmospheres
• High-humidity conditions
• Industrial chemical exposure

This makes it particularly suitable for:

• Naval electronics
• Offshore communication systems
• Marine control equipment
• Outdoor electronic enclosures
• Coastal infrastructure

Compared with aluminum-filled or tin-plated copper-filled conductive gaskets, Monel-filled gaskets offer significantly longer service life in corrosive environments.

Excellent Environmental Sealing Performance

The silicone elastomer provides outstanding resilience and compression set resistance, allowing the gasket to maintain an effective environmental seal over long service periods.

It can provide protection against:

• Water ingress
• Dust contamination
• Moisture penetration
• Air leakage

Depending on enclosure design, these gaskets can support protection ratings up to:

IP65, IP67, and even IP68.

Wide Operating Temperature Range

Monel wire-filled conductive silicone gaskets can typically operate continuously between:

-55°C to +200°C (-67°F to +392°F)

Even under repeated thermal cycling, the material maintains excellent shielding effectiveness and sealing performance.

Comparison of Common Conductive Wire Materials

Several wire materials are used in conductive silicone gaskets, each offering different levels of conductivity and environmental resistance.

Among these options, Monel wire offers one of the best combinations of conductivity, corrosion resistance, and long-term reliability.

Typical Applications

Because they provide both EMI shielding and environmental sealing, Monel wire-filled conductive silicone gaskets are widely used in high-reliability industries.

Aerospace and Aviation

Applications include:

• Radar systems
• Avionics
• Navigation equipment
• Satellite communication systems

Defense Electronics

Common applications include:

• Military enclosures
• Command and control systems
• Weapon electronics
• Naval electronic systems

Marine and Offshore Equipment

These gaskets are ideal for:

• Offshore communication systems
• Marine instrumentation
• Shipboard control equipment
• Offshore platform electronics

Telecommunications and Renewable Energy

Growing applications include:

• 5G base stations
• Outdoor telecom cabinets
• Energy storage systems
• Power control cabinets
• Solar and inverter systems
• Industrial automation equipment

Selection Considerations and Final Thoughts

To maximize performance and service life, several factors should be considered when selecting a conductive silicone gasket:

• Operating environment
• Required shielding effectiveness
• Environmental protection rating
• Compression design
• Mounting configuration
• Service life requirements

For applications exposed to salt spray, high humidity, or corrosive environments, Monel wire-filled conductive silicone gaskets are often the preferred solution due to their superior durability and reliability.

As electronic systems continue to demand higher levels of electromagnetic compatibility and environmental protection, Monel wire-filled conductive silicone gaskets have become an essential sealing technology for aerospace, defense, marine, and high-end communication equipment.

By combining excellent EMI shielding, exceptional corrosion resistance, and reliable environmental sealing, these advanced gaskets help ensure the long-term performance and reliability of critical electronic systems operating in the world’s most demanding environments.
