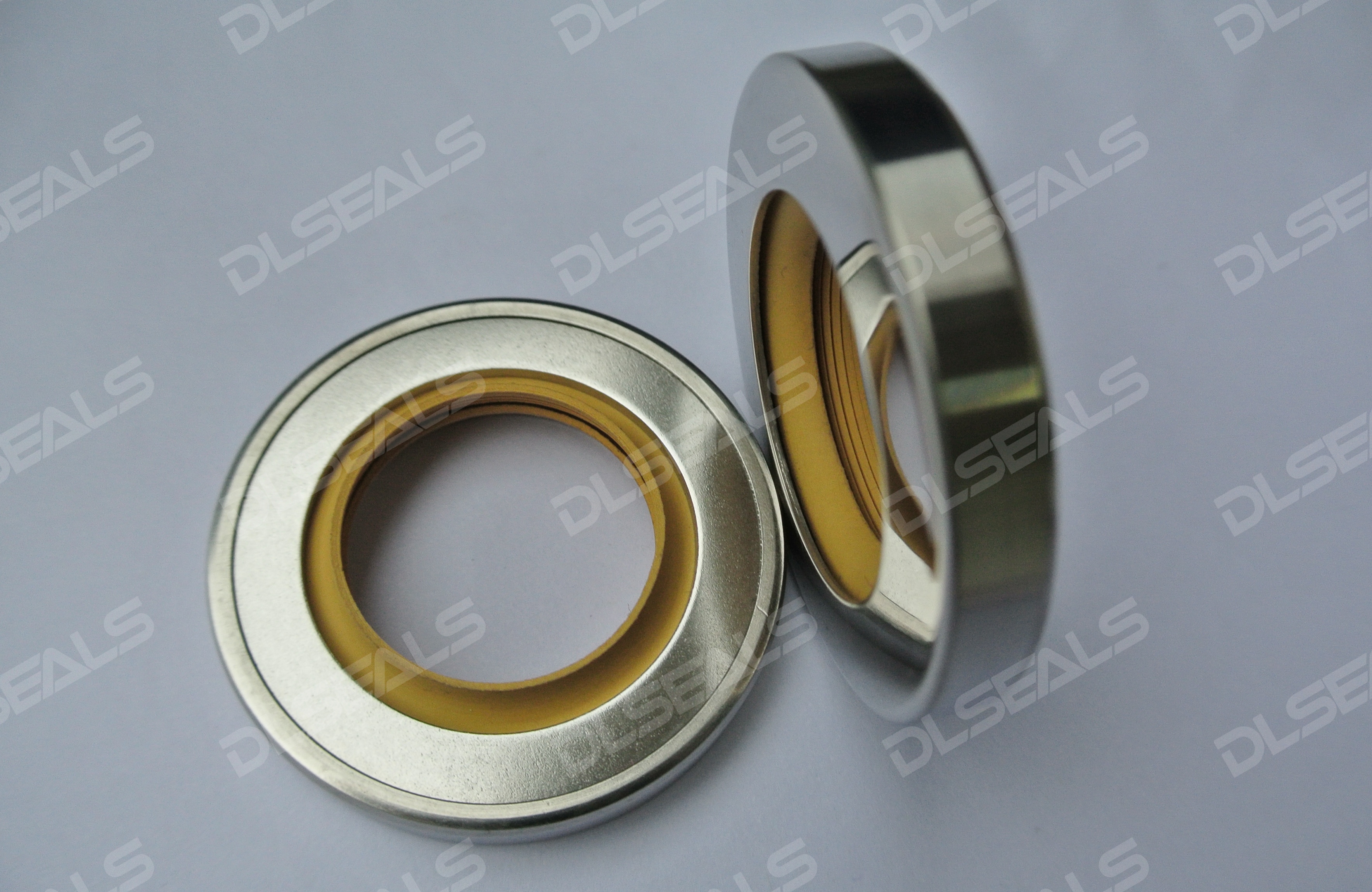

In the field of industrial equipment sealing, stainless steel double-lip bidirectional oil seals represent a breakthrough in structural innovation and reliability. This solution effectively addresses leakage issues under high-pressure, dusty, and complex motion conditions.
I. Innovative Structural Design
1. Dual-Lip Synergistic Sealing
- Primary Seal Lip: Fluororubber (FKM) material with symmetrical bidirectional edges (≤40MPa pressure resistance)
- Dust Lip: PTFE composite layer blocks external particles >10μm (≥99% efficiency)
- Synergy: Dual protection against internal fluid leakage and external contaminants
2. Stainless Steel Skeleton Core
- Material: SUS630 precipitation-hardened stainless steel
- Key Properties:
- Yield strength ≥1000MPa (300% deformation resistance improvement)
- Thermal expansion matching metal housings (-40°C~220°C stability)
3. Adaptive Compensation
- Automatic radial interference compensation for shaft wear (±1mm)
- Rigid-flexible coupling design withstands ±3mm axial vibration
II. Performance Advantages
| Feature | Specification | Customer Value |
|---|---|---|
| Pressure Resistance | Bidirectional ≤40MPa | Suitable for hydraulic cylinders/gearboxes |
| Temperature Range | -40°C~220°C | Arctic to industrial high-temp environments |
| Dust Protection | IP6X certified | Effective particle isolation |
| Service Life | 2-5 years | >50% maintenance reduction |
| Installation | Direction-independent | Prevents assembly errors |
III. Industrial Applications
1. Construction Machinery
- Hydraulic cylinder seals for excavators/loaders
- Swing bearing protection for tunnel boring machines
2. Energy Equipment
- Wind turbine gearboxes (-30°C performance)
- Oilfield pumping units (sand & H₂S resistance)
3. Transportation
- Commercial vehicle hubs (80km/h endurance)
- Railway bogies (vibration & moisture resistance)
IV. Technical Specifications
- Shaft diameter range: 20-500mm
- Max linear speed: ≤20m/s
- Standard materials: SUS630 + FKM/PTFE
- Certifications: ISO 6194, DIN 3761, IP69K
Post time: Jun-28-2025
