As automotive, commercial vehicle, marine, construction machinery, and industrial power systems continue to pursue higher efficiency and greater power output, turbocharging has become an essential technology for modern engines. Among all turbocharger components, the turbocharger seal ring plays a critical role in preventing oil leakage, maintaining boost pressure, and ensuring the long-term reliability of the turbocharger.
What Is a Turbocharger Seal Ring?

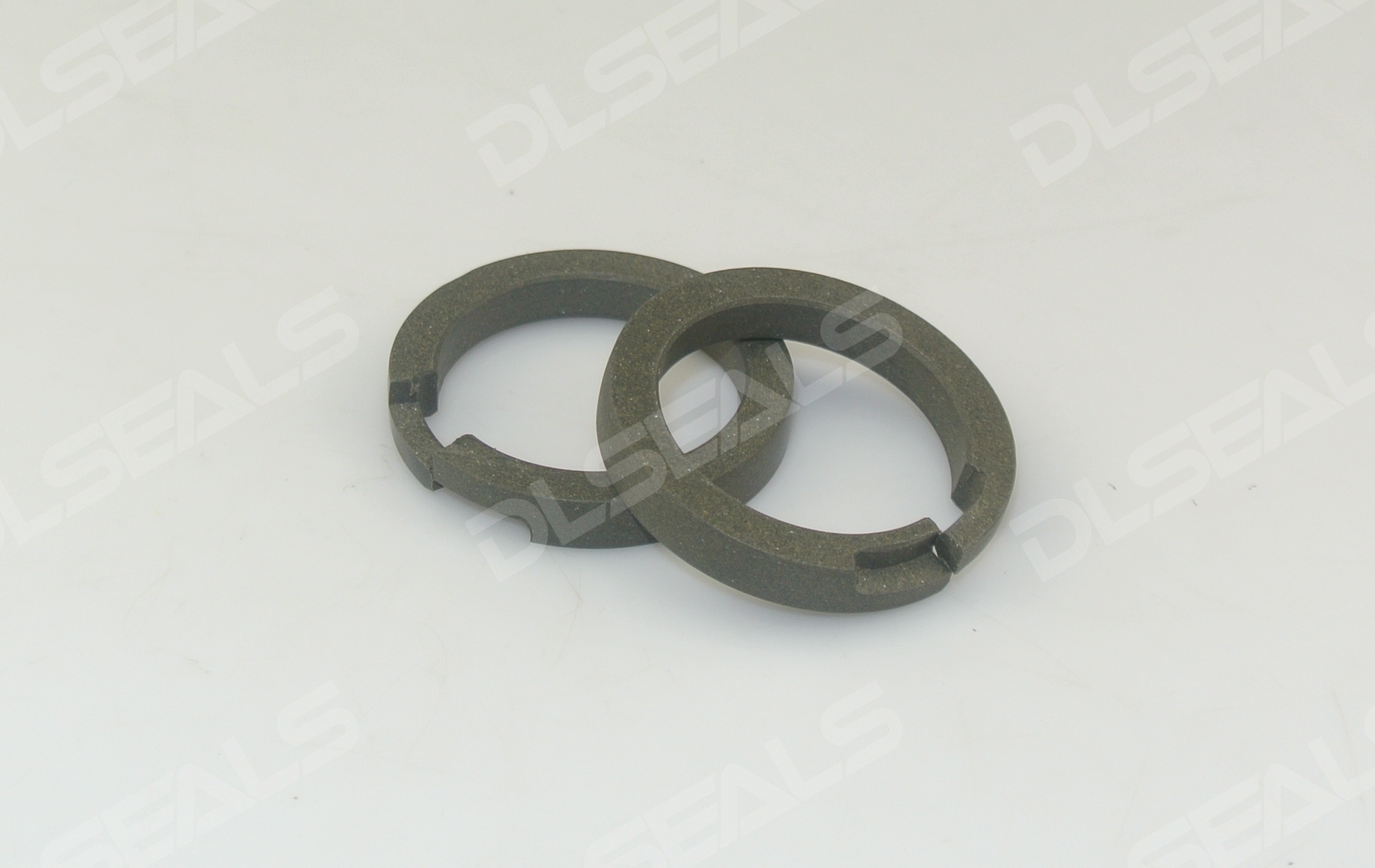

A turbocharger seal ring, often referred to as a turbo piston ring, is installed in grooves on the turbine shaft or compressor shaft. Unlike conventional rubber oil seals, it provides dynamic sealing through precise clearances, oil pressure, and its own spring force rather than direct contact.
Since turbochargers typically operate at speeds ranging from 100,000 to 300,000 RPM, while turbine-side temperatures may exceed 900°C, seal rings must offer outstanding resistance to high temperatures, wear, and fatigue.
Working Principle
Engine oil continuously lubricates and cools the turbocharger bearings during operation. The seal ring works together with the shaft and housing to create a very small sealing clearance. Combined with pressure differentials and centrifugal force, this design effectively:
- Prevents lubricating oil from entering the compressor side.
- Stops oil from leaking into the turbine housing.
- Prevents exhaust gases from entering the bearing housing.
- Maintains proper lubrication pressure.
- Improves turbocharger efficiency and service life.
Because it is a non-contact or low-contact dynamic sealing system, friction and wear are minimized even under extremely high rotational speeds.
Common Materials
Material selection depends on operating temperature, rotational speed, and application requirements.
High Carbon Spring Steel
The most commonly used material due to its excellent elasticity, fatigue resistance, and cost-effectiveness.
Stainless Steel
Provides excellent corrosion resistance, oxidation resistance, and dimensional stability under elevated temperatures.
High-Temperature Alloys
Premium turbochargers for heavy-duty diesel engines, racing vehicles, marine engines, and aerospace applications often use high-performance alloys such as:
- Inconel Alloys
- Nickel-Based Heat-Resistant Alloys
- Other High-Temperature Superalloys
To further improve durability, many seal rings also receive advanced surface treatments, including phosphating, nitriding, DLC (Diamond-Like Carbon) coatings, PVD coatings, and hard chrome plating.
Performance Requirements
A high-quality turbocharger seal ring should provide:
- Excellent high-temperature resistance
- Superior wear resistance
- High fatigue strength
- Precision dimensional accuracy
- Oxidation and corrosion resistance
- Stable sealing performance under high-speed rotation
Common Causes of Failure
Seal ring failures are generally caused by multiple factors, including:
- Long-term thermal fatigue
- Insufficient lubrication
- Contaminated engine oil
- Excessive shaft wear
- Improper installation
- Overspeed operation
Typical symptoms include oil leakage, blue exhaust smoke, increased oil consumption, reduced boost pressure, and shortened turbocharger bearing life.
Typical Applications
Turbocharger seal rings are widely used in:
- Passenger vehicles
- Commercial trucks
- Heavy-duty diesel engines
- Construction equipment
- Agricultural machinery
- Marine propulsion systems
- Gas-powered generators
- Industrial compressors
- High-performance racing engines
Different applications require customized materials, dimensional tolerances, and sealing designs to meet specific operating conditions.
How to Choose the Right Turbocharger Seal Ring
When selecting a turbocharger seal ring, engineers should evaluate operating temperature, shaft speed, lubrication conditions, media compatibility, dimensional tolerances, and expected service life. For severe operating environments, high-temperature alloys combined with advanced surface coatings provide superior durability and long-term sealing performance.
Conclusion
Although small in size, the turbocharger seal ring is one of the most important sealing components inside a turbocharger. Its performance directly affects lubrication efficiency, boost pressure, engine reliability, and turbocharger service life. As modern engines continue to operate at higher temperatures and higher rotational speeds, demand for precision-engineered, high-performance turbocharger seal rings will continue to grow. Selecting premium-quality seal rings helps reduce oil leakage, improve operational efficiency, and extend the overall lifespan of turbocharging systems.
