In industrial piping systems, valves act as “traffic controllers” for fluids, with sealing performance directly determining system safety and efficiency. From corrosive chemicals to high-pressure steam and cryogenic liquefied gases, multi-layered sealing architectures construct the last line of defense against leakage.
I. Dual-Layer Sealing Architecture Analysis
Modern valves adopt a tiered sealing design system:
| Sealing Tier | Function | Typical Components |
|---|---|---|
| Primary Seal (Process Seal) | Directly isolates media, blocks leakage at critical flow paths | - Seat ring (Metal/Soft alloy) - Disc/Ball sealing surface (Precision-machined) |
| Secondary Seal (Dynamic/Static) | Seals auxiliary leakage paths (stem, bonnet) | - Stem packing (Graphite/PTFE) - Spiral-wound gasket - Bellows seal (Zero-emission design) |

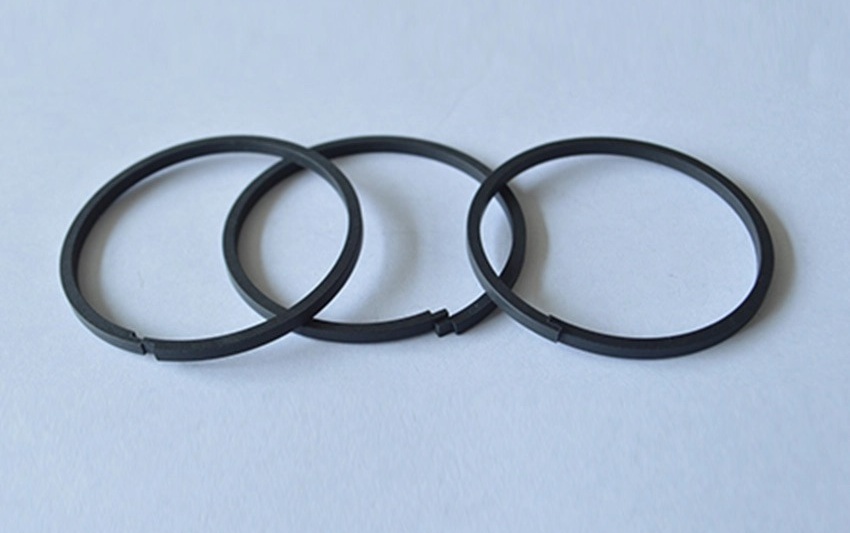

Case Study: In 10,000psi high-pressure gate valves, Stellite hard-alloy seats withstand 450°C, while flexible graphite packing rings enable dynamic stem sealing.
II. Advanced Sealing Material Technology Matrix
Core Material Performance Comparison
| Material Type | Pressure-Temp Limit | Media Compatibility | Typical Applications |
|---|---|---|---|
| Reinforced Graphite Composite | -260°C~650°C/≤420bar | Acids/Alkalis/Organic solvents | Chemical valve stems, HP steam valves |
| PTFE Laminate | -200°C~260°C/≤100bar | Aggressive corrosives | Diaphragm valves, pickling systems |
| Metal Alloys | |||
| ・ Stellite 21 | ≤1000°C/No upper pressure limit | Erosion/wear resistance | Power plant turbine bypass valves |
| ・ Inconel 625 | -200°C~700°C | Chloride/Oxidizer resistance | Subsea valves |
| Specialty Elastomers | |||
| ・ Perfluoroelastomer (FFKM) | -25°C~327°C | Full-spectrum chemical resistance | H₂SO₄ transfer valves in fabs |
III. Industry Challenges & Sealing Solutions
A. Oil & Gas Exploration:
- Challenge: Hydrogen embrittlement in 15,000psi wellhead valves
- Solutions:
- Primary seal: Tungsten carbide self-energizing seat rings
- Secondary seal: API 607 fire-certified graphite packing
- Emergency seal: Injection-repairable seat systems
B. Nuclear Power Critical Valves:
- Challenge: Cesium radiation corrosion in reactor coolant valves
- Core Technologies:
- Dual bellows seal structures (Inconel 750 alloy)
- Ni-alloy + flexible graphite spiral-wound gaskets
IV. International Fugitive Emission Control Standards
Stringent regulations drive innovation:
■ Germany TA-Luft: CH₄ leakage < 500ppm @ stem seal
■ ISO 15848-1 Class AH: Leakage < 50ppm (-196°C~540°C test)
■ SHELL SPE 77/300: Zero VOC fugitive emissions Key Sealing Technologies:
- Live-load packing systems (Spring-energized graphite)
- Bellows-sealed valves (15-year maintenance-free service)
- Sub-micron sealing surface grinding (Ra ≤ 0.1μm)
V. Valve Seal Failure Modes & Prevention Strategies
Typical Failure Cases and Countermeasures:
| Failure Mode | Root Cause | Prevention Strategy |
|---|---|---|
| Seat erosion failure | Solid-particle impingement | Use SiC ceramic seats + 45° flow path optimization |
| Packing pyrolysis | PTFE carbonization above 260°C | Add cooling fins + graphite thermal barriers |
| Metal surface galling | High-P/low-T metal adhesion | Apply DLC coating to reduce friction coefficient |
| Gasket cold flow | Bolt preload relaxation | Use serrated metal gaskets + hydraulic同步紧固系统 |
Conclusion: Core Principles of Valve Sealing Technology
Valve sealing systems represent a precision integration of materials science, structural mechanics, and operational adaptability. Key principles:
- Layered Defense
Primary seals rigidly block media flow; secondary seals dynamically compensate micro-leaks. - Extreme Condition Adaptation
Materials must transcend physical limits (from -260°C cryo to 1000°C ultra-high temp). - Full Lifecycle Management
ASME B16.34/API 622 standards require synergistic analysis of thermal stress, mechanical fatigue, and installation deviations.
Engineering Imperative: Valve seals are not isolated components but mechanically coupled living structures within piping systems. Every thermal cycle, pressure surge, or media change tests their resilience. Only systems thinking achieves true zero-leakage performance.
